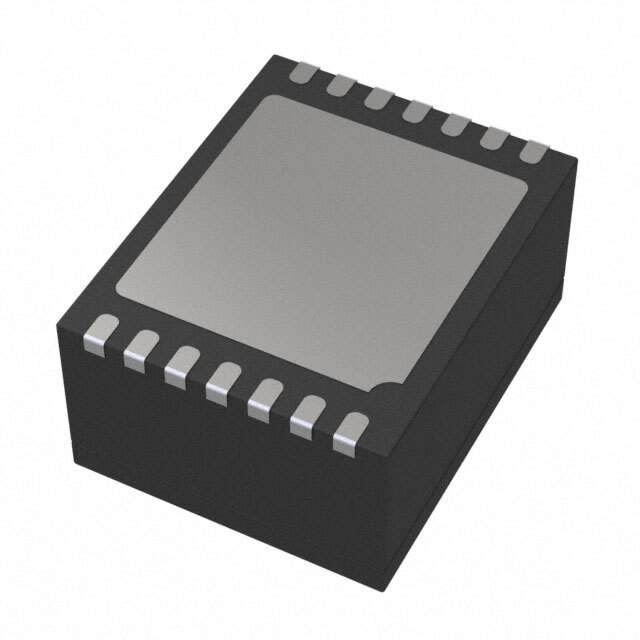

MLX90817LXE-DBG-012-RE Real Image
Same model may have multiple batches, images only for reference.

MLX90817LXE-DBG-012-RE

Part No MLX90817LXE-DBG-012-RE
Manufacturer Melexis Technologies NV
Catalog Pressure Sensors, Transducers
Description IC SENSOR PRESSURE ANALOG 14DFN / Pressure Sensor Absolute 14-BFDFN Exposed Pad
Datasheet
MLX90817LXE-DBG-012-RE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Melexis Technologies NV
Package Tape & Reel (TR)
Applications Board Mount
Pressure Type Absolute
Output Type Analog Voltage
Voltage - Supply 4.5V ~ 5.5V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 150°C
Package / Case 14-BFDFN Exposed Pad
Supplier Device Package 14-DFN (4x5)
Base Product Number MLX90817
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 413-MLX90817LXE-DBG-012-RETR
Standard Package 2,500
Win Source Part Number 1155378-MLX90817LXE-DBG-012-RE
Ultra Librarian 3D Model Ultra Librarian MLX90817LXE-DBG-012-RE CAD Model

Description

The MLX90817LXE-DBG-012-RE is a temperature-compensated pressure sensor, manufactured by Melexis Technologies NV.

  • Mounting: Surface-mount device
  • Output: Amplified
  • Voltage Supply: 4.5V to 5.5V
  • Package Size: 14-BFDFN Exposed Pad
  • Applications: Board mount
  • Supply and Demand Status: Balanced
