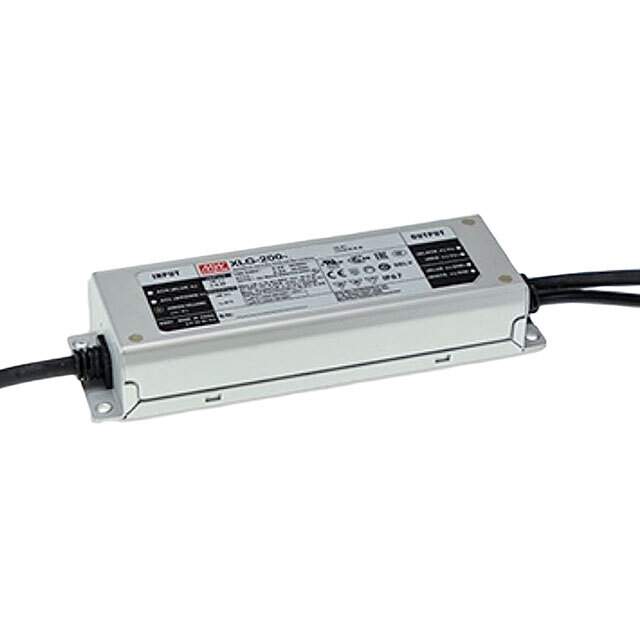

XLG-200-12-A Real Image
Same model may have multiple batches, images only for reference.

XLG-200-12-A

Part No XLG-200-12-A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description 200W LED POWER SUPPLY O/P +12V/1 / 16A 12V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
XLG-200-12-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series XLG-200 (200W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 100VAC
Voltage - Input (Max) 305VAC
Voltage - Output 12V
Current - Output (Max) 16A
Power (Watts) 192 W
Voltage - Isolation 4.2 kV
Features OCP, OTP, OVP, SCP
Ratings IP67
Temperature Range - Operating -40°C ~ 90°C
Efficiency 92%
Termination Style Wire Leads
Dimension 6.89" L x 2.48" W x 1.40" H (175.0mm x 63.0mm x 35.5mm)
Approval Agency CB, CCC, CE, cURus, EAC, ENEC, RCM
Mounting Type Chassis Mount
Base Product Number XLG-200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Other Names 1866-XLG-200-12-A,XLG-200-12-A-PH
Standard Package 16
Win Source Part Number 1205231-XLG-200-12-A
Ultra Librarian 3D Model Ultra Librarian XLG-200-12-A CAD Model

Description

This LED driver is manufactured by MEAN WELL USA Inc. and has a Win Source Part Number of 1205231-XLG-200-12-A.

  • Series: XLG-200 (200W)
  • Type: Constant Current
  • Termination: Wire Leads
  • Features: OCP, OTP, OVP, and SCP
  • Packaging: Box
  • Standard Package: 16
  • Ratings: IP67
  • Power Output: 192 W
  • Voltage Output: 12V
  • Topology: AC DC Converter
  • Voltage Isolation: 4.2 kV
  • Number of Outputs: 1
  • Maximum Current Output: 16A
  • Voltage Input: 100VAC to 305VAC
  • Efficiency: 92%
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C to 90°C
  • ECCN: EAR99
  • MSL Level: No MSL Level
  • REACH Status: Unaffected
  • HTSUS: 8504.40.9530
