Same model may have multiple batches, images only for reference.

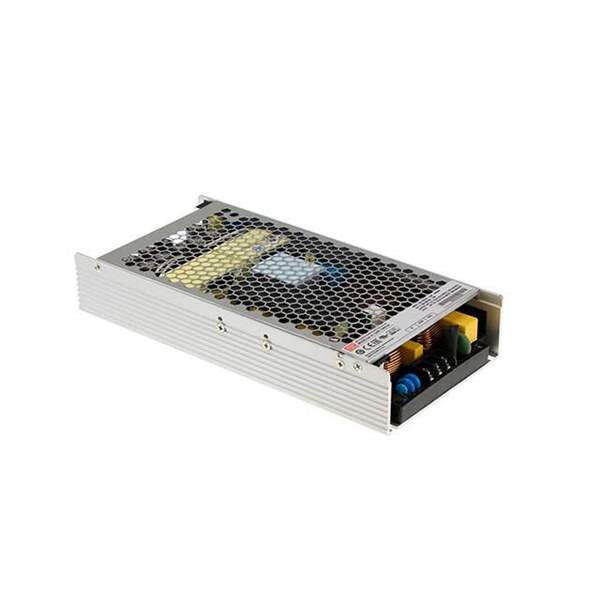

UHP-1000-24 Real Image
Same model may have multiple batches, images only for reference.

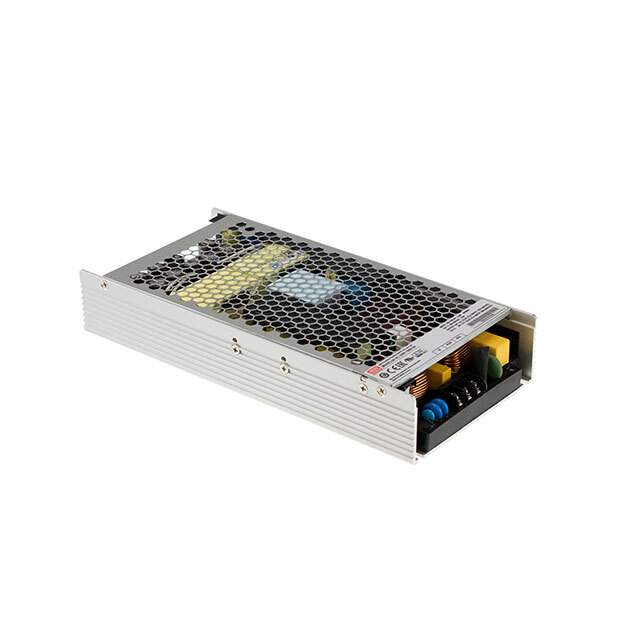

UHP-1000-24

Part No UHP-1000-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 1008W / Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC, 250 ~ 370 VDC Input
Datasheet
UHP-1000-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr MEAN WELL USA Inc.
Series UHP-1000 (1000W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC, 250 ~ 370 VDC
Voltage - Output 1 24V
Current - Output 1 42 A
Power (Watts) 1008W
Applications Household Appliances, ITE (Commercial)
Voltage - Isolation 3.75 kV
Efficiency 95%
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type Chassis Mount
Dimension 9.45" L x 4.53" W x 1.61" H (240.0mm x 115.0mm x 41.0mm)
Approval Agency CB, CE, cURus, EAC, TUV
Base Product Number UHP-1000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9540
Other Names 1866-5587
Standard Package 8
Win Source Part Number 1022510-UHP-1000-24
Ultra Librarian 3D Model Ultra Librarian UHP-1000-24 CAD Model

Description

The MEAN WELL USA Inc. UHP-1000-24 is a 1008W enclosed AC DC converter with adjustable output, PFC, remote on/off and universal input features.

  • Power: 1008W
  • Package: Box
  • Category: Power Supplies - External/Internal (Off-Board)>AC DC Converters
  • Standard Package: 8
  • Mounting: Chassis Mount
  • Efficiency: 95%
  • Isolation Voltage: 3.75 kV
  • Output Count: One
  • Voltage: 24V
  • Current Output: 42A
  • Applications: Household appliances and ITE (Commercial)
