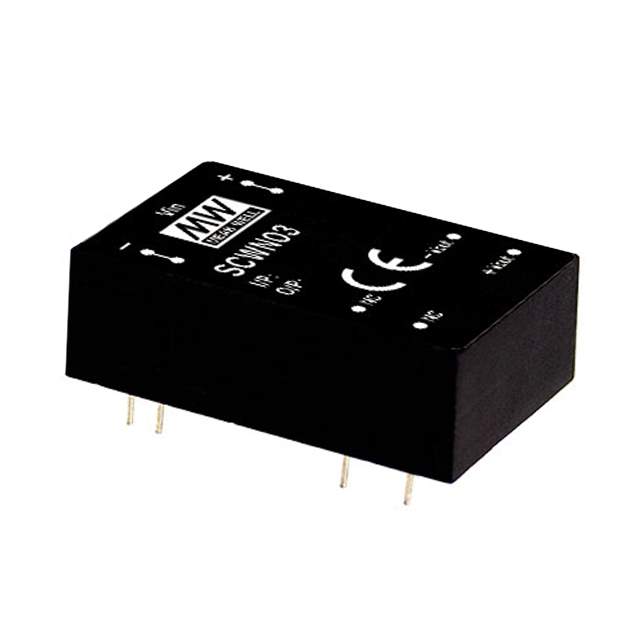

Same model may have multiple batches, images only for reference.

SCWN03B-12

Name: SCWN03B-12
Brand: Mean Well Enterprises Co., Ltd.
SKU: 1081386
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SCWN03B-12
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 3W / Isolated Module DC DC Converter 1 Output 12V 250mA 18V - 36V Input
Datasheet	SCWN03B-12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	MEAN WELL USA Inc.
Series	SCWN03 (3W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	250mA
Power (Watts)	3 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 90°C (With Derating)
Efficiency	86%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 8 Leads
Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	SCWN03
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1866-4386,SCWN03B-12-ND
Standard Package	600
Win Source Part Number	1081386-SCWN03B-12
Ultra Librarian 3D Model	Ultra Librarian SCWN03B-12 CAD Model

Alternative Products

Description

The SCWN03B-12 is a 3W isolated module DC-DC converter with a voltage isolation of 3 kV.

Voltage Isolation: 3 kV
Maximum Output Current: 250mA
Input Voltage Range: 18V to 36V
Features: OCP, SCP, and UVLO
Applications: ITE (Commercial)
Package: 24-DIP module with 8 leads
Packaging: Tube
Efficiency: 86%
Operating Temperature Range: -40°C to 90°C with derating
Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Manufacturer: MEAN WELL USA Inc.
