Same model may have multiple batches, images only for reference.

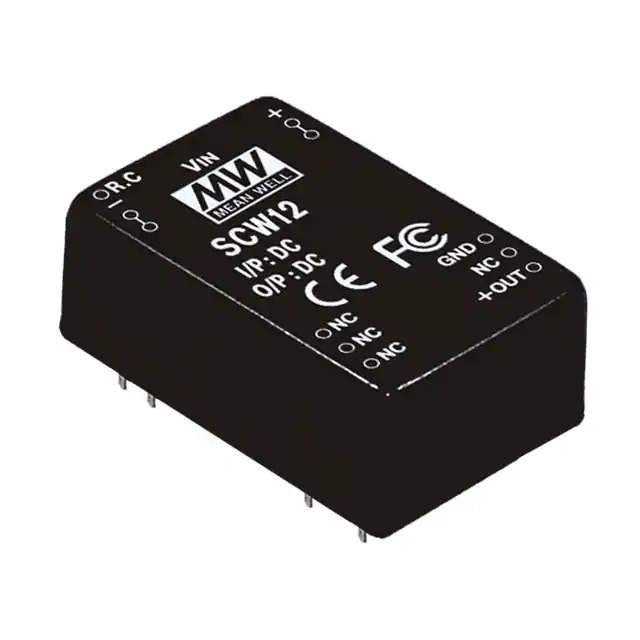

SCW12B-05 Real Image
Same model may have multiple batches, images only for reference.

SCW12B-05

Part No SCW12B-05
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 12W / Isolated Module DC DC Converter 1 Output 5V 2.4A 18V - 36V Input
Datasheet
SCW12B-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series SCW12 (12W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 2.4A
Power (Watts) 12 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -25°C ~ 71°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 24-DIP Module, 9 Leads
Size / Dimension 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Control Features Enable, Active High
Base Product Number SCW12
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847109-SCW12B-05
Ultra Librarian 3D Model Ultra Librarian SCW12B-05 CAD Model

Description

The SCW12B-05 is a 12W isolated module DC-DC converter from Mean Well Enterprises Co., Ltd.

  • Series: SCW12
  • Application: Power Supplies
  • Mounting Type: Board Mount
  • Features: Remote On/Off, OCP, SCP
  • Voltage - Input: 18V ~ 36V
  • Voltage - Output 1: 5V
  • Current - Output (Max): 2.4A
  • Efficiency: 83%
  • Mounting Type: Through Hole
  • Package / Case: 24-DIP Module
  • Number of Outputs: 1
  • Number of Leads: 9
  • Application: ITE (Commercial)
  • Operating Temperature: -25°C ~ 71°C (With Derating)
  • Voltage - Isolation: 1.5 kV
  • Product Status: Active
