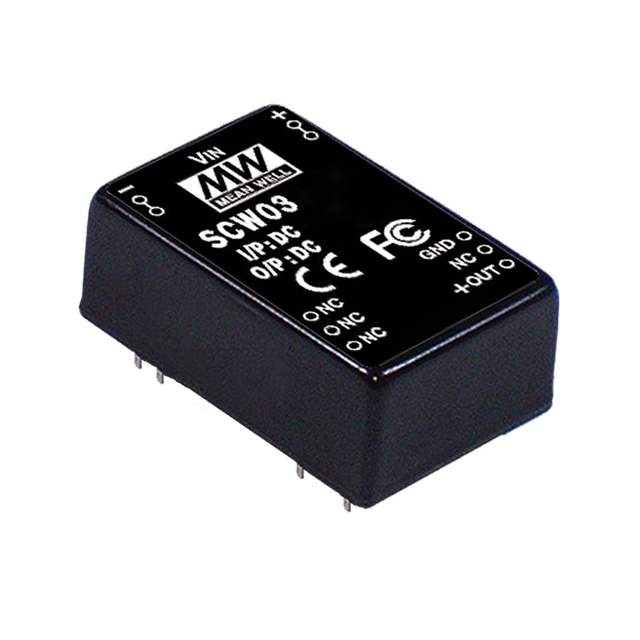

SCW03B-05

Part No SCW03B-05
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W / 3W DC-DC Regulated Single Output Converter
Datasheet
SCW03B-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer MEAN WELL USA Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Maximum Input Voltage 36V
Voltage - Output 1 5V
Current - Output (Maximum) 600mA
Power (Watts) 3W
Voltage - Isolation 1000V
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 71°C (With Derating)
Efficiency 75%
Mounting Style Through Hole
Manufacturer Package 24-DIP Module, 8 Leads
Dimension 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812089-SCW03B-05
Ultra Librarian 3D Model Ultra Librarian SCW03B-05 CAD Model

Description

The MEAN WELL USA Inc. 812089-SCW03B-05 is a 3W Isolated Module with OCP, SCP features.

  • Voltage Isolation: 1000V
  • Maximum Input Voltage: 36V
  • Output Voltage: 5V (Single)
  • Efficiency: 75%
  • Applications: ITE (Commercial)
  • Temperature Range: -40°C ~ 71°C (With Derating)
  • Mounting: Through Hole
  • Dimensions: 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
  • Current Output: 600mA
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
