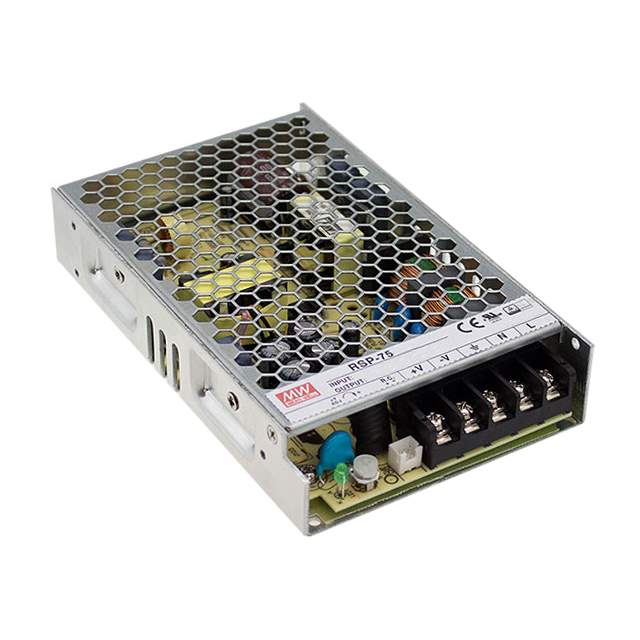

Same model may have multiple batches, images only for reference.

RSP-75-24

Name: RSP-75-24
Brand: Mean Well Enterprises Co., Ltd.
SKU: 1036279
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RSP-75-24
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Board Mount AC DC Converters
Description	AC/DC CONVERTER 24V 77W / Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet	RSP-75-24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr	MEAN WELL USA Inc.
Series	RSP-75 (75W)
Package	Box
Type	Enclosed
Number of Outputs	1
Voltage - Input	85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1	24V
Current - Output 1	3.2 A
Power (Watts)	77W
Applications	ITE (Commercial)
Voltage - Isolation	4 kV
Efficiency	87%
Temperature Range - Operating	-25°C ~ 70°C (With Derating)
Features	Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type	Chassis Mount
Dimension	6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm)
Approval Agency	CB, CCC, CE, cURus, TUV
Minimum Load Required	No
Base Product Number	RSP-75
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9520
Other Names	1866-4284,RSP-75-24-ND
Standard Package	30
Win Source Part Number	1036279-RSP-75-24
Ultra Librarian 3D Model	Ultra Librarian RSP-75-24 CAD Model

Alternative Products

Description

The RSP-75-24 is a power supply external/internal (off-board) AC DC converter product manufactured by MEAN WELL USA Inc.

Description: 75W RSP-75 series enclosed type product that features adjustable output, PFC, remote on/off, and universal input
Output Current: 3.2 A
Mounting Type: Chassis mount
