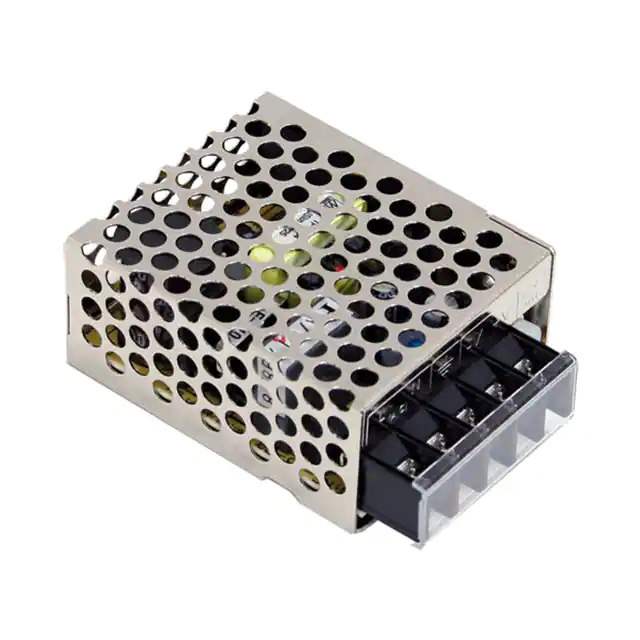

Same model may have multiple batches, images only for reference.

RS-15-5

Name: RS-15-5
Brand: Mean Well Enterprises Co., Ltd.
SKU: 847454
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RS-15-5
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	External/Internal (Off - Board) AC DC Converters
Description	AC/DC CONVERTER 5V 15W / Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet	RS-15-5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr	Mean Well Enterprises Co., Ltd.
Series	RS-15 (15W)
Package	Box
Product Status	Active
Type	Enclosed
Number of Outputs	1
Voltage - Input	85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1	5V
Current - Output 1	3 A
Power (Watts)	15W
Applications	ITE (Commercial)
Voltage - Isolation	3 kV
Efficiency	77%
Temperature Range - Operating	-20°C ~ 70°C (With Derating)
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Size / Dimension	2.46" L x 2.01" W x 1.10" H (62.5mm x 51.0mm x 28.0mm)
Approval Agency	CB, CCC, CE, cURus, TUV
Minimum Load Required	No
Base Product Number	RS-15
Standard Package	108 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9510
Win Source Part Number	847454-RS-15-5
Ultra Librarian 3D Model	Ultra Librarian RS-15-5 CAD Model

Alternative Products

Description

The RS-15-5 is a 15W enclosed AC/DC converter from Mean Well Enterprises Co., Ltd.

Series: RS-15
Size: 2.46" L x 2.01" W x 1.10" H
Mounting: Chassis mounting
Input Voltage: 85 ~ 264 VAC and 120 ~ 370 VDC
Output Voltage: 5V
Output Current: 3A (maximum)
Features: Adjustable output and universal input
Efficiency: 77%
Voltage Isolation: 3kV
Temperature Range: -20°C to 70°C
Approvals: CB, CCC, CE, cURus, and TUV
