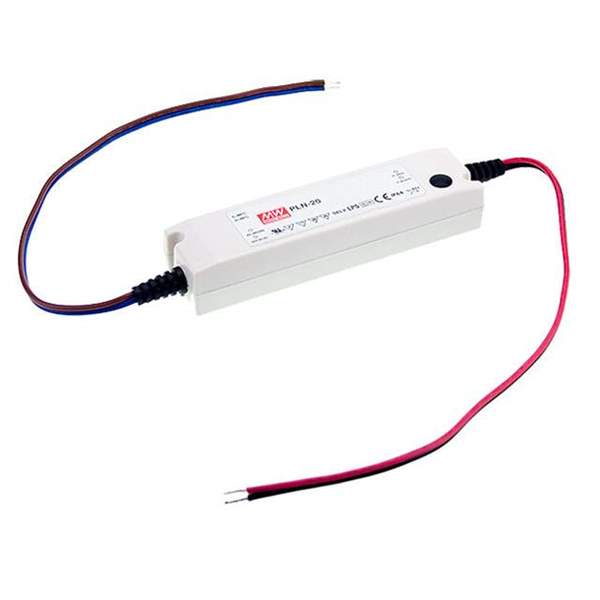

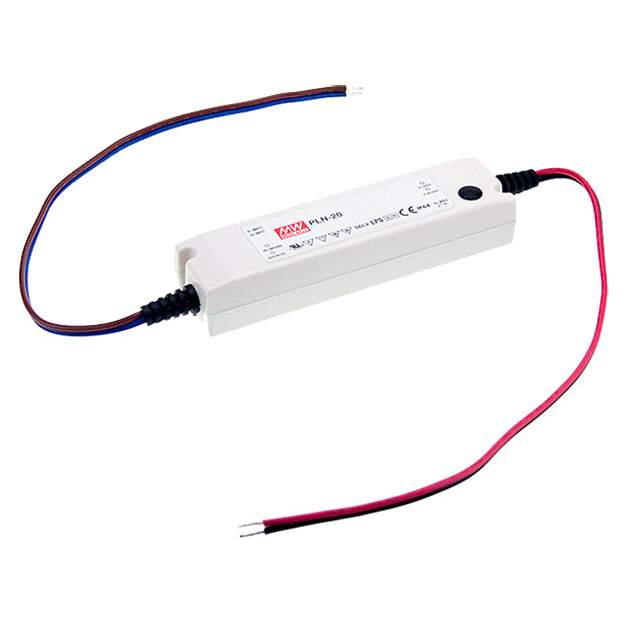

PLN-20-36 Real Image
Same model may have multiple batches, images only for reference.

PLN-20-36

Part No PLN-20-36
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC AC/DC 27-36V 550MA / 550mA 27 ~ 36V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
PLN-20-36 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series PLN-20 (20W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 277VAC
Voltage - Output 27 ~ 36V
Current - Output (Max) 550mA
Power (Watts) 20 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Ratings IP64
Temperature Range - Operating -30°C ~ 60°C
Efficiency 83%
Termination Style Wire Leads
Dimension 5.85" L x 1.52" W x 1.10" H (148.5mm x 38.5mm x 28.0mm)
Approval Agency CB, CE, cURus, PSE, TUV
Mounting Type Chassis Mount
Base Product Number PLN-20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Standard Package 60
Win Source Part Number 979980-PLN-20-36
Ultra Librarian 3D Model Ultra Librarian PLN-20-36 CAD Model

Description

This external/internal power supply is a PLN-20 (20W) series from MEAN WELL USA Inc.

  • Win Source Part Number: 979980-PLN-20-36
  • Type: Constant Current
  • Voltage Output: 27 ~ 36V
  • Power: 20 W
  • Efficiency: 83%
  • Features: OCP, OTP, OVP, and SCP
  • Rating: IP64
  • Voltage Isolation: 3.75 kV
  • Number of Outputs: 1
  • Maximum Output Current: 550mA
  • Voltage Input Range: 90VAC to 277VAC
  • Mounting Type: Chassis Mount
  • Operating Temperature: -30°C to 60°C
  • Dimension: 5.85" L x 1.52" W x 1.10" H (148.5mm x 38.5mm x 28.0mm)
  • Lead Free: Yes
  • RoHS Compliant: Yes
  • Base Product Number: PLN-20
  • Approvals: CB, CE, cURus, PSE, and TUV
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8504.40.9510
