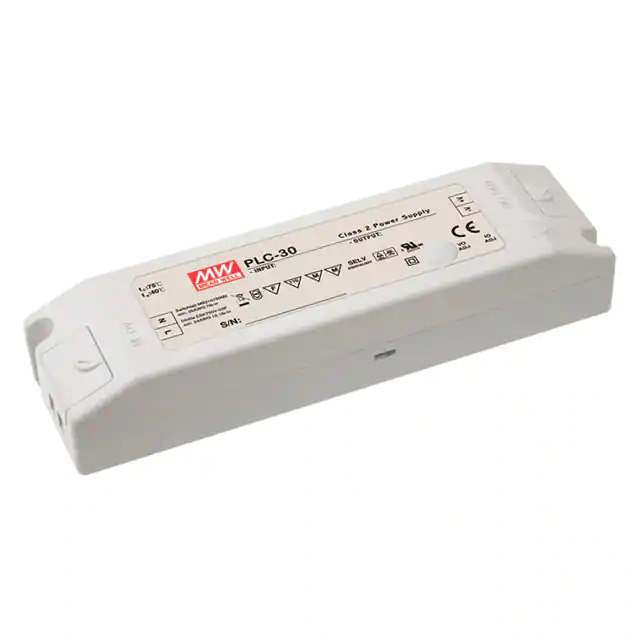

PLC-30-48 Real Image
Same model may have multiple batches, images only for reference.

PLC-30-48

Part No PLC-30-48
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC AC/DC 33.6-48V 630MA
Datasheet
PLC-30-48 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - LED Drivers
Mfr Mean Well Enterprises Co., Ltd.
Series PLC-30 (30W)
Package Box
Product Status Not For New Designs
Programmable Not Verified
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 264VAC
Voltage - Output 33.6 ~ 48V
Current - Output (Max) 630mA
Power (Watts) 30 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Temperature Range - Operating -30°C ~ 50°C
Efficiency 85.5%
Termination Style Terminal Block
Size / Dimension 6.30" L x 1.81" W x 1.18" H (160.0mm x 46.0mm x 30.0mm)
Approval Agency CB, CCC, CE, ENEC, PSE, TUV, UR
Mounting Type Chassis Mount
Base Product Number PLC-30
Standard Package 70 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 655976-PLC-30-48
Ultra Librarian 3D Model Ultra Librarian PLC-30-48 CAD Model

Description

The PLC-30-48 is a 30W constant current LED driver designed for power supplies in external or internal applications.

  • Termination Style: Terminal block
  • Package: Box
  • Dimensions: 6.30" L x 1.81" W x 1.18" H
  • Voltage Output Range: 33.6V to 48V
  • Protection Features: Overcurrent Protection (OCP), Overtemperature Protection (OTP), Overvoltage Protection (OVP), and Short Circuit Protection (SCP)
  • Efficiency: 85.5%
  • Operating Temperature: -30°C to 50°C
  • Certifications: CB, CCC, CE, ENEC, PSE, TUV, and UR
