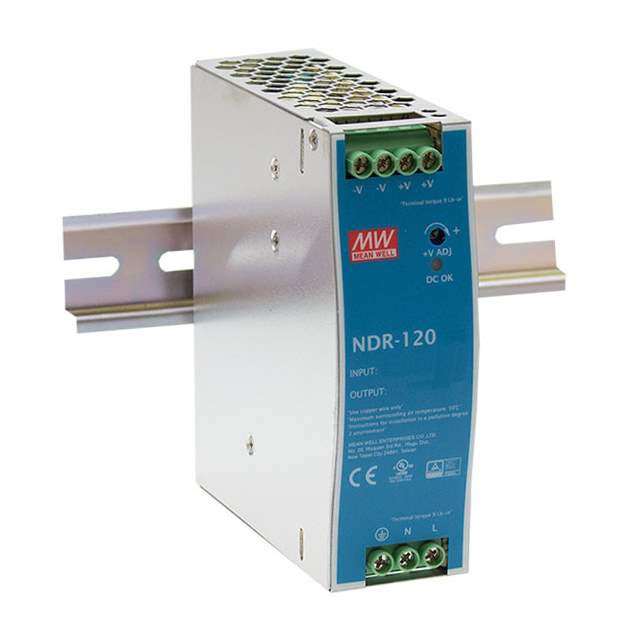

NDR-120-24

Part No NDR-120-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog OEM Parts (M - N)
Description AC/DC CONVERTER 24V 120W /
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>Industrial, DIN Rail Power Supplies
Mfr MEAN WELL USA Inc.
Series NDR-120 (120W)
Package Box
Input Type AC or DC
Number of Outputs 1
AC Voltage - Input 90 ~ 264 VAC
DC Voltage - Input (Min) 127V
DC Voltage - Input (Max) 370V
Voltage - Output 1 24V
Current - Output (Max) 5A
Power (Watts) 120W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Efficiency 88%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Dimension 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm)
Approval Agency CB, CE, cULus, TUV
Minimum Load Required No
Base Product Number NDR-120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names NDR-120-24-ND,1866-3518
Standard Package 20
Win Source Part Number 1081902-NDR-120-24
Ultra Librarian 3D Model Ultra Librarian NDR-120-24 CAD Model

Description

The NDR-120-24 from MEAN WELL USA Inc. is an industrial, DIN rail power supply with an adjustable output and universal input.

  • It has a power output: of 120W and a current output: of 5A.
  • The voltage isolation: is 3 kV and the efficiency: is 88%.
  • The temperature range: for operating is -20°C ~ 70°C (with derating).
  • The dimension: of the power supply is 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm).
  • The package is a box and the package comes in a standard package of 20.
  • The ECCN is EAR99 and the HTSUS is 8504.40.9520.
  • The other alternative cross-reference part numbers for this power supply are 1368319, GS120A24-P1M, EPS-25-5, and LPF-60-12.
  • The approval agencies: are CB, CE, cULus, and TUV.
