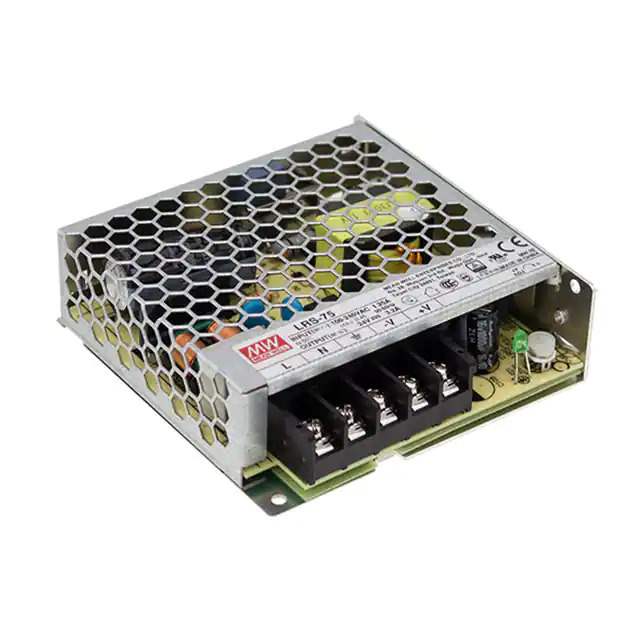

LRS-75-24 Real Image
Same model may have multiple batches, images only for reference.

LRS-75-24

Part No LRS-75-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 77W / Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 373 VDC Input
Datasheet
LRS-75-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series LRS-75 (75W)
Package Box
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 373 VDC
Voltage - Output 1 24V
Current - Output 1 3.2 A
Power (Watts) 77W
Applications Household Appliances, ITE (Commercial)
Voltage - Isolation 4 kV
Efficiency 90%
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm)
Approval Agency CB, CCC, CE, cURus, TUV
Minimum Load Required No
Base Product Number LRS-75
Standard Package 45 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Win Source Part Number 847269-LRS-75-24
Ultra Librarian 3D Model Ultra Librarian LRS-75-24 CAD Model

Description

The LRS-75-24 is a 75W enclosed power supply from Mean Well Enterprises Co., Ltd.

  • Series: LRS-75
  • Output: Adjustable
  • Input: Universal
  • Size: 3.90" L x 3.82" W x 1.18" H
  • Application: Household Appliances and Commercial Applications
  • Input Voltage: 85 ~ 264 VAC, 120 ~ 373 VDC
  • Output Voltage: 24V
  • Output Current (Max): 3.2A
  • Efficiency: 90%
  • Minimum Load: Not Required
  • Mounting Type: Chassis Mounting
  • Operating Temperature: -30°C to 70°C (with derating)
  • Safety Standards: CB, CCC, CE, cURus, TUV
