Same model may have multiple batches, images only for reference.

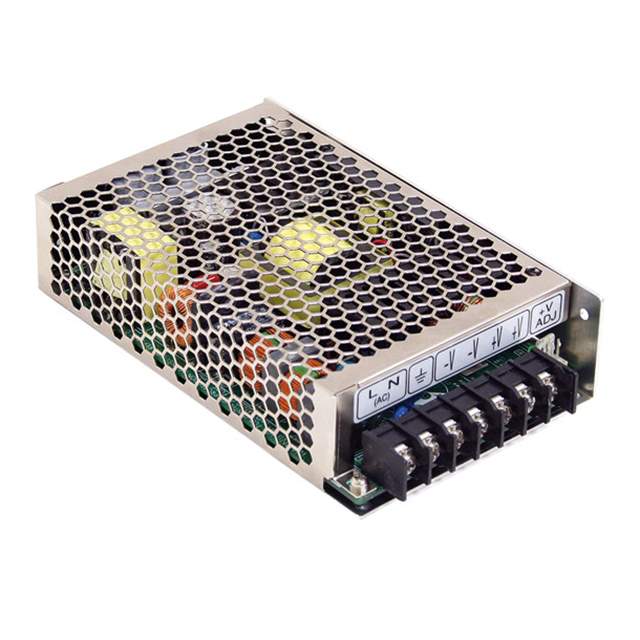

HRP-100-24 Real Image
Same model may have multiple batches, images only for reference.

HRP-100-24

Part No HRP-100-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 108W / Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
HRP-100-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr MEAN WELL USA Inc.
Series HRP-100 (100W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 24V
Current - Output 1 4.5 A
Power (Watts) 108W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 88.5%
Temperature Range - Operating -40°C ~ 60°C (With Derating)
Features Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type Chassis Mount
Dimension 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm)
Approval Agency CB, CE, cURus, TUV
Minimum Load Required No
Base Product Number HRP-100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 1866-2699,HRP-100-24-ND
Standard Package 24
Win Source Part Number 1062914-HRP-100-24
Ultra Librarian 3D Model Ultra Librarian HRP-100-24 CAD Model

Description

The HRP-100-24 by MEAN WELL USA Inc. is an enclosed type external/internal power supply with an adjustable output, PFC, remote on/off, and universal input.

  • Package: Box
  • Application: ITE (Commercial)
  • Power: 108W
  • Voltage Input: 85 ~ 264 VAC, 120 ~ 370 VDC
  • Voltage Isolation: 3 kV
  • Voltage Output: 24V
  • Efficiency: 88.5%
  • Current Output: 4.5A
  • Mounting: Chassis mountable
  • Temperature Range: -40°C to 60°C (With Derating)
  • Dimensions: 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm)
