Same model may have multiple batches, images only for reference.

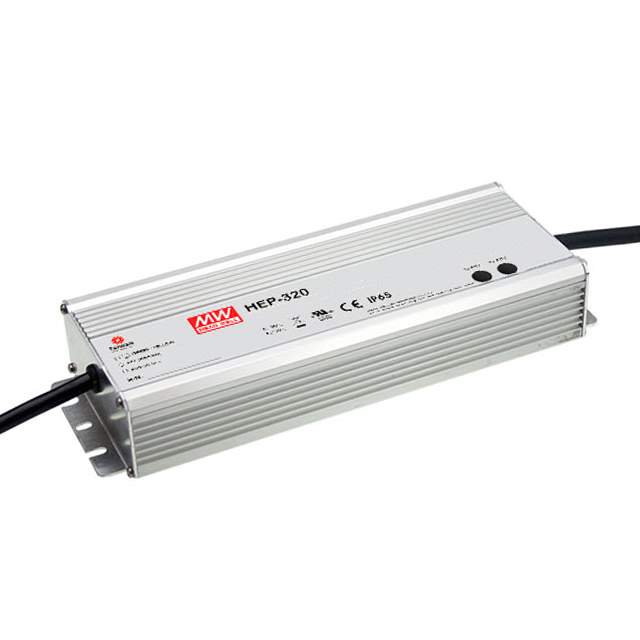

HEP-320-54A Real Image
Same model may have multiple batches, images only for reference.

HEP-320-54A

Part No HEP-320-54A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 54V 321W / Enclosed AC DC Converters 1 Output 54V 90 ~ 305 VAC, 127 ~ 431 VDC Input
Datasheet
HEP-320-54A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr MEAN WELL USA Inc.
Series HEP-320 (320W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 305 VAC, 127 ~ 431 VDC
Voltage - Output 1 54V
Current - Output 1 5.95 A
Power (Watts) 321W
Applications ITE (Commercial)
Voltage - Isolation 3.75 kV
Efficiency 95%
Temperature Range - Operating -55°C ~ 70°C (With Derating)
Features Adjustable Output, IP65, PFC, Universal Input
Mounting Type Chassis Mount
Dimension 9.92" L x 3.54" W x 1.72" H (252.0mm x 90.0mm x 43.8mm)
Approval Agency CB, CE, cURus
Base Product Number HEP-320
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Other Names HEP-320-54A-ND,1866-2280
Standard Package 8
Win Source Part Number 1184541-HEP-320-54A
Ultra Librarian 3D Model Ultra Librarian HEP-320-54A CAD Model

Description

The HEP-320 (320W) is an enclosed AC DC converter with an adjustable output feature, a universal input, and PFC. It is designed for ITE (Commercial) applications and has a standard package of 8.

  • Power Output: 321W
  • Input Voltage: 90 ~ 305 VAC, 127 ~ 431 VDC
  • Isolation Voltage: 3.75 kV
  • Output Voltage: 54V
  • Current Output: 5.95 A
  • Efficiency: 95%
  • Minimum Load: No minimum load
  • Mounting Type: Chassis Mount
  • Operating Temperature: -55°C ~ 70°C (With Derating)
  • Dimension: 9.92" L x 3.54" W x 1.72" H (252.0mm x 90.0mm x 43.8mm)
  • Approvals: CB, CE, and cURus
