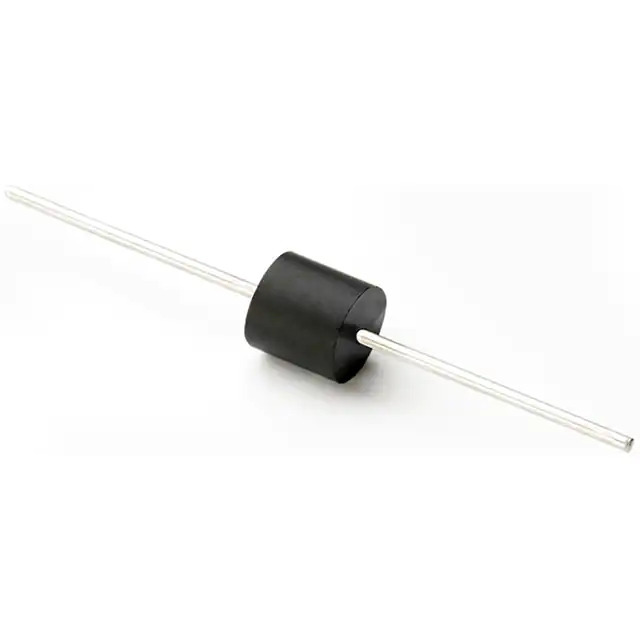

Same model may have multiple batches, images only for reference.
15KP43CA MDE Semiconductor, Inc.
Same model may have multiple batches, images only for reference.

15KP43CA

Part No 15KP43CA
Manufacturer MDE Semiconductor, Inc.
Catalog TVS - Diodes
Description TVS DIODE BP 43VRWM 69.8VC
Datasheet
15KP43CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDE Semiconductor Inc
Series 15KP
Package Bulk
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 43V
Voltage - Breakdown (Min) 48V
Voltage - Clamping (Max) @ Ipp 69.8V
Current - Peak Pulse (10/1000µs) 216.3A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1377336-15KP43CA
Ultra Librarian 3D Model Ultra Librarian 15KP43CA CAD Model

Description

The 15KP43CA is a TVS Diode designed for circuit protection against transient voltage surges. It is a zener-type diode with a reverse standoff voltage of 43V and a breakdown voltage of 48V.

  • Reverse Standoff Voltage: 43V
  • Breakdown Voltage: 48V
  • Clamping Voltage (Ipp): 69.8V
  • Peak Pulse Current (10/1000µs): 216.3A
  • Peak Power: 15kW
  • Application: General Purpose
  • Package: P600 Axial
  • Manufacturer: MDE Semiconductor Inc
