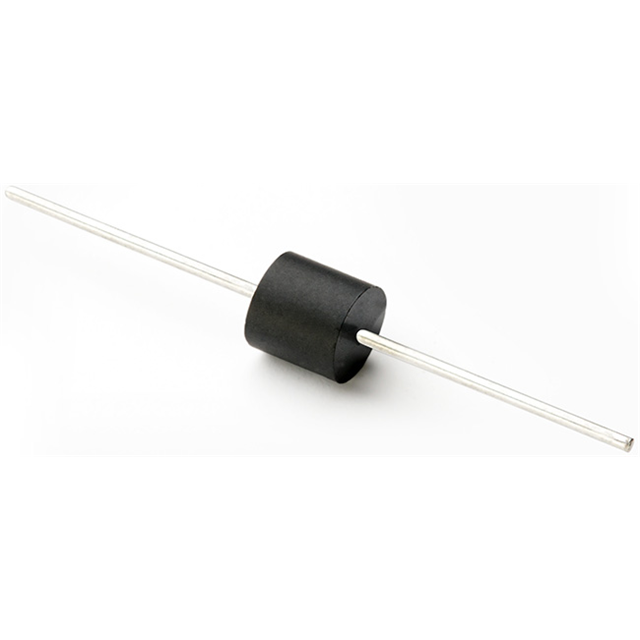

15KP120CA Real Image1 15KP120CA Real Image2
Same model may have multiple batches, images only for reference.
15KP120CA Real Image1 15KP120CA Real Image2
15KP120CA Real Image1 15KP120CA Real Image2
Same model may have multiple batches, images only for reference.

15KP120CA

Part No 15KP120CA
Manufacturer MDE Semiconductor, Inc.
Catalog TVS - Diodes
Description TVS DIODE BP 120VRWM 192.3VC / 192.3V Clamp 78.5A Ipp Tvs Diode Through Hole P600
Datasheet
15KP120CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Transient Voltage Suppressors (TVS)>TVS Diodes
Mfr MDE Semiconductor, Inc.
Series 15KP
Package Bulk
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 120V
Voltage - Breakdown (Min) 134V
Voltage - Clamping (Max) @ Ipp 192.3V
Current - Peak Pulse (10/1000µs) 78.5A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 200 pcs
Win Source Part Number 1380538-15KP120CA
Ultra Librarian 3D Model Ultra Librarian 15KP120CA CAD Model

Description

The 15KP120CA is a Zener-type TVS diode designed for circuit protection against transient voltage spikes manufactured by MDE Semiconductor, Inc..

  • Application: General Purpose
  • Voltage: 120V
  • Breakdown Voltage: 134V
  • Clamping Voltage: 192.3V @ Peak Pulse Current
  • Peak Pulse Power: 15kW
  • Type: Bidirectional
  • Package: P600 Axial
  • Operating Temperature: -55°C to 175°C
