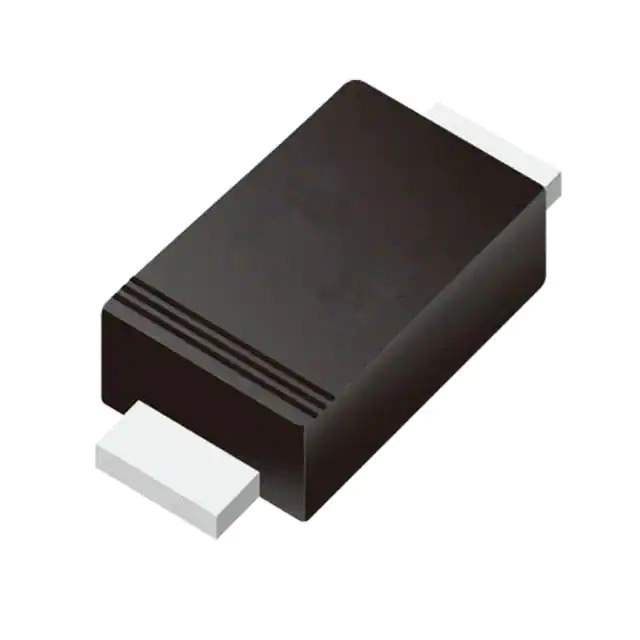

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMAF
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 2A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F 160pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAF
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 676303-SS24F
Ultra Librarian 3D Model Ultra Librarian SS24F CAD Model

Description

The 676303-SS24F is a fast recovery Schottky diode designed for rectification applications.

  • Series: It belongs to the SMAF series and is supplied in tape and reel packaging, with a standard package of 12,000 pieces.
  • Maximum DC Reverse Voltage: With a maximum DC reverse voltage of 40V
  • Average Rectified Current: and an average rectified current of 2A, this diode provides efficient rectification with low forward voltage drop.
  • Reverse Leakage Current: It has a reverse leakage current of 500µA @ 40V
  • Capacitance: and a capacitance of 160pF @ 4V and 1MHz.
  • Operating Temperature: The 676303-SS24F operates in a temperature range of -55°C to 125°C, making it suitable for a wide range of applications.
  • Package: It features a surface mount package (DO-221AC, SMA Flat Leads) and is an active product from MDD.
