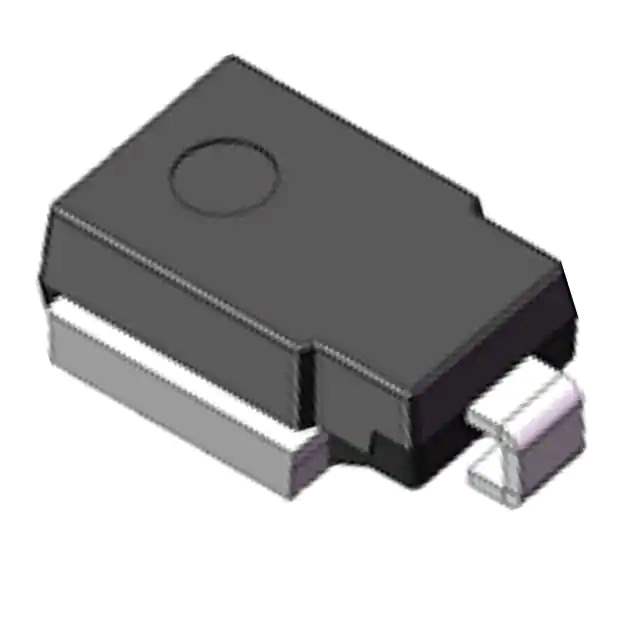

SM8S40A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series Automotive, AEC-Q101, DO218AB
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 40V
Voltage - Breakdown (Min) 44.4V
Voltage - Clamping (Max) @ Ipp 64.5V
Current - Peak Pulse (10/1000µs) 102A
Power - Peak Pulse 6600W (6.6kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package DO-218AB
Standard Package 750 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 668486-SM8S40A
Ultra Librarian 3D Model Ultra Librarian SM8S40A CAD Model

Description

The 668486-SM8S40A is a Zener type transient voltage suppressor (TVS) diode designed for automotive applications. It belongs to the AEC-Q101 series and comes in the DO218AB package.

  • Voltage Reverse Standoff: 40V
  • Breakdown Voltage: 44.4V
  • Clamping Voltage at Peak Pulse Current: 64.5V
  • Power Peak Pulse Rating: 6600W (6.6kW)
  • Unidirectional Channel Count: 1
  • Surface Mountable: true
  • Package: tape and reel
  • Standard Package: 750 pieces
  • Temperature Range: -55°C to 175°C
  • Manufacturer: MDD
  • Market Status: active
