Same model may have multiple batches, images only for reference.

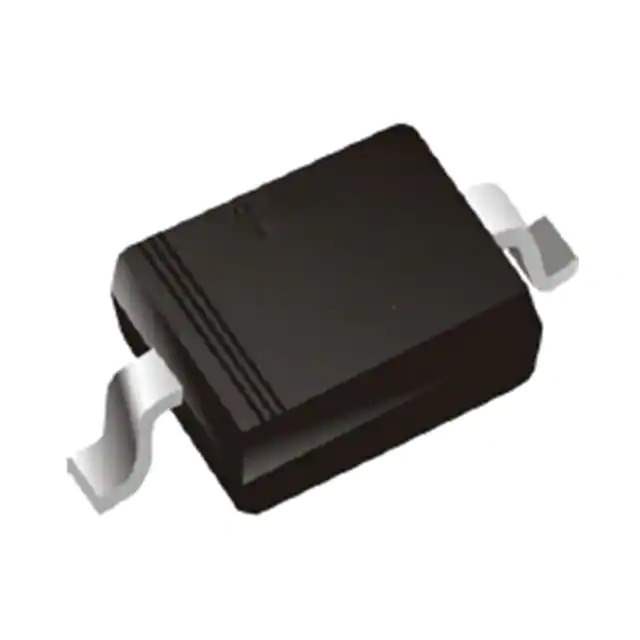

SD36 Real Image
Same model may have multiple batches, images only for reference.

SD36

Part No SD36
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 36VWM 60VC SOD323
Datasheet
SD36 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOD-323
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V (Max)
Voltage - Breakdown (Min) 40V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 350W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 60pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-323
Supplier Device Package SOD-323
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 664655-SD36
Ultra Librarian 3D Model Ultra Librarian SD36 CAD Model

Description

The SD36 is a surface mount zener diode from MDD.

  • Type: unidirectional zener diode
  • Reverse Standoff Voltage: 36V
  • Breakdown Voltage: 40V
  • Peak Pulse Power: 350W
  • Application: power line protection in general-purpose applications
  • Capacitance: 60pF @ 1MHz
  • Peak Pulse Current: 1A (8/20µs)
  • Mounting: surface mount
  • Packaging: tape & reel
  • Operating Temperature Range: -55°C to 150°C
  • Product Status: active
  • Standard Package: 6,000 pcs
