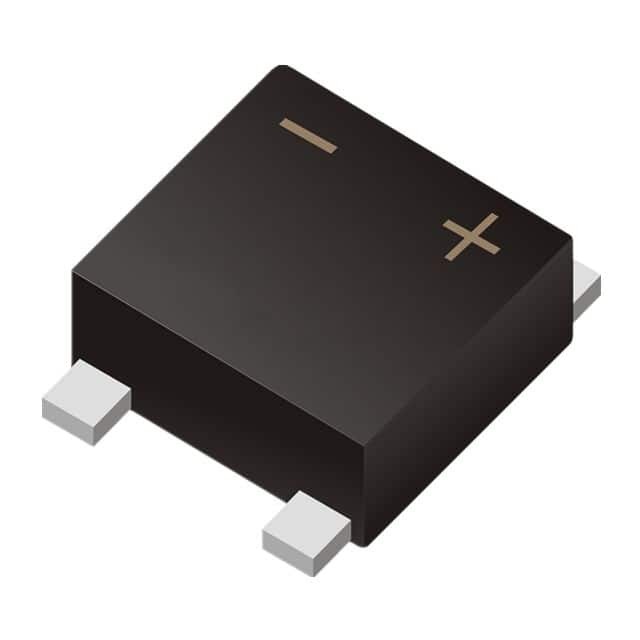

Same model may have multiple batches, images only for reference.
MSB40M
Same model may have multiple batches, images only for reference.

MSB40M

Part No MSB40M
Manufacturer MDD
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 4A UMSB
Datasheet
MSB40M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Bridge Rectifier Single Phase Standard 1 kV Surface Mount UMSB
Manufacturer MDD
Series UMSB
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 4-SMD, Flat Leads
Case / Package UMSB
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number UMSB40M000S40A, 3372-MSB40MTR
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 885944-MSB40M
Ultra Librarian 3D Model Ultra Librarian MSB40M CAD Model

Description

The MDD UMSB40M is a bridge rectifier single phase standard 1 kV surface mount UMSB product that comes in a reel - TR package with 4-SMD, flat leads. It is suitable for use in discrete semiconductor products.

  • Product Type: Bridge Rectifier Single Phase Standard
  • Voltage: 1 kV
  • Mounting: Surface Mount
  • Package: UMSB, 4-SMD, Flat Leads
  • Packaging: Reel - TR
  • Category: Discrete Semiconductor Products
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Quantity per Package: 3000
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8541.10.0080
  • Other Part Numbers: UMSB40M000S40A, 3372-MSB40MTR
