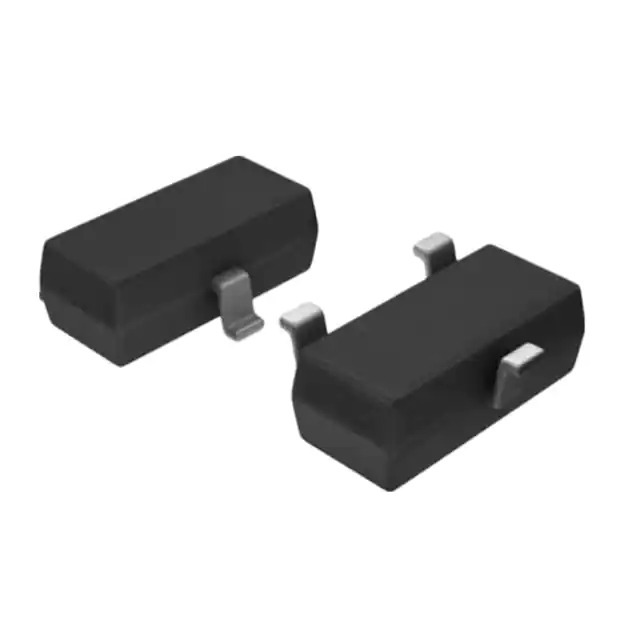

ESD0302TL MDD
Same model may have multiple batches, images only for reference.

ESD0302TL

Part No ESD0302TL
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 10VC SOT23 / Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOT-23
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 2
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 4.2V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 56W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 0.4pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23
Supplier Device Package SOT-23
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362282-ESD0302TL
Ultra Librarian 3D Model Ultra Librarian ESD0302TL CAD Model

Description

The 1362282-ESD0302TL is a transient voltage suppressor (TVS) diode designed for circuit protection. Bold the product name (e.g., BAV99S,135 → 1362282-ESD0302TL) and manufacturer (e.g., Nexperia USA Inc. → MDD).

  • Type: Transient Voltage Suppressor (TVS) Diode
  • Series: SOT-23
  • Package: SOT-23
  • Mounting: Surface Mount
  • Voltage Rating: 3.3V
  • Breakdown Voltage: 4.2V
  • Peak Pulse Current: 1A
  • Power Dissipation: 56W
  • Protection: Power Line
  • Capacitance: 0.4pF @ 1MHz
  • Direction: Unidirectional
  • REACH: Unaffected
  • Temperature Range: -55°C to 125°C
