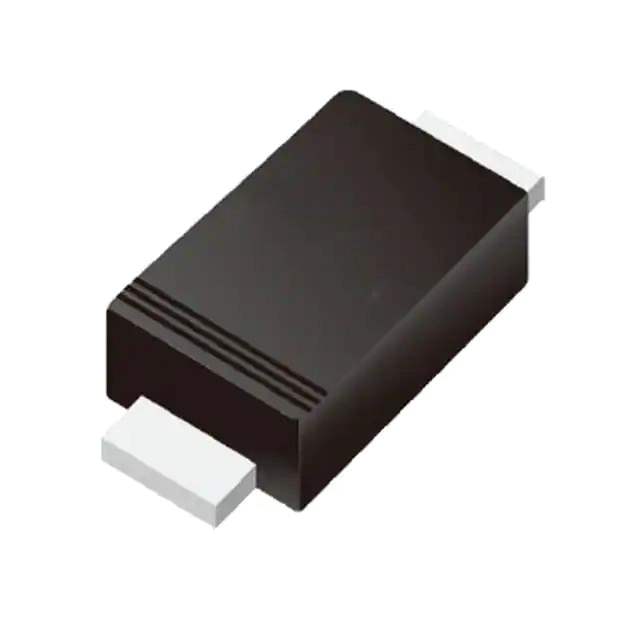

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SOD-123FL
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 20 V
Capacitance @ Vr, F 110pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 587174-DSK12
Ultra Librarian 3D Model Ultra Librarian DSK12 CAD Model

Description

The DSK12 is a Schottky diode designed for rectification applications.

  • Maximum Reverse Voltage (Vr): 20V
  • Average Rectified Current (Io): 1A
  • Forward Voltage (Vf): 550mV @ 1A
  • Reverse Leakage Current: 300µA @ 20V
  • Capacitance: 110pF @ 4V and 1MHz
  • Temperature Range: -55°C to 125°C
  • Package: SOD-123F
  • Mounting Type: Surface Mount
  • Status: Active
  • Manufacturer: MDD
