Maxim Integrated MAX6897PAZT+T Voltage Supervisor IC

The Maxim Integrated MAX6897PAZT+T is a compact, highly precise voltage supervisor IC designed to monitor power supplies in digital systems. It ensures that the system microprocessor, FPGA, or other digital logic operates reliably by providing a reset signal in the event of power supply undervoltages (UVLO). This tiny component is a critical part of maintaining system stability and preventing data corruption during power-up, power-down, or brown-out conditions.

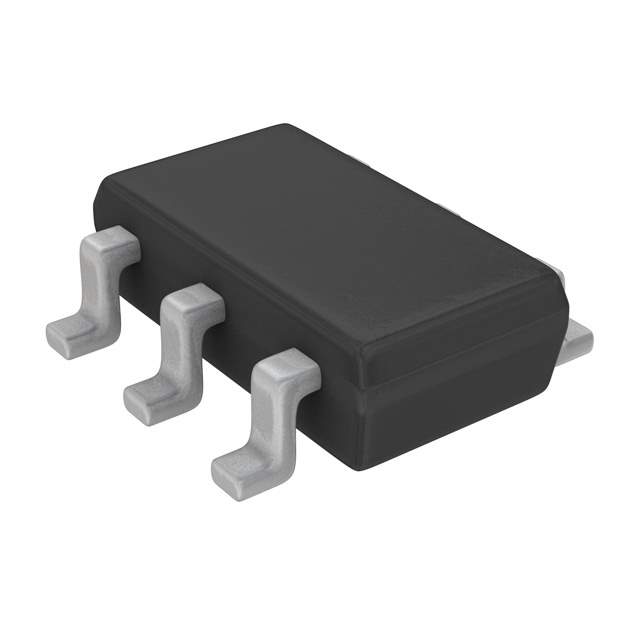

The device comes in a small, 6-pin SOT-23 package, making it ideal for space-constrained applications. Despite its diminutive size, the MAX6897 offers a robust feature set. It has an adjustable reset threshold voltage that allows designers to tailor the voltage monitoring level to match specific system requirements. This flexibility is crucial for systems that operate on different power supply levels or require a custom reset threshold.

One of the key features of the MAX6897PAZT+T is its low supply current, which is particularly important for battery-powered and portable devices where power efficiency is paramount. The IC also boasts a fast response time, quickly generating a reset signal when the monitored voltage falls below the preset threshold. This fast response helps protect the system from the potential dangers of an unstable power supply.

Additionally, the MAX6897 includes a manual reset input. This allows for an external signal to trigger a system reset, providing a convenient way for users or external controllers to reboot the system without cycling the power supply. The reset output from the device is typically an active-low signal, ensuring compatibility with a wide range of microprocessors and other digital logic devices.

For designers looking for a reliable power monitoring solution, the Maxim Integrated MAX6897PAZT+T offers a high degree of precision and customization in a small package. Its low power consumption, fast response time, and flexible threshold adjustment make it an excellent choice for ensuring system stability across a variety of applications, from consumer electronics to industrial control systems.
