The MAX4944LELA+TG65 is a cutting-edge, high-performance USB switch from Maxim Integrated, designed to facilitate USB 2.0 high-speed data line switching. This device is specifically engineered to cater to applications that require switching between USB sources or peripheral devices. With its remarkable efficiency and reliability, the MAX4944LELA+TG65 stands out as a superior choice for designers looking to enhance their USB interface capabilities.

Key Features

• High-Speed USB 2.0 Compatibility: The device supports high-speed data rates of up to 480Mbps, making it ideal for fast data transfer applications.
• Low On-Resistance: The switch features a low on-resistance (RON) of typically 4.5Ω, ensuring minimal signal degradation and power loss during operation.
• Enhanced ESD Protection: Integrated ESD protection circuits safeguard the USB lines from electrostatic discharges, providing robustness and reliability for the connected USB devices.
• Single Supply Operation: Operates from a single supply voltage ranging from 2.8V to 5.5V, accommodating various design requirements and simplifying power management.

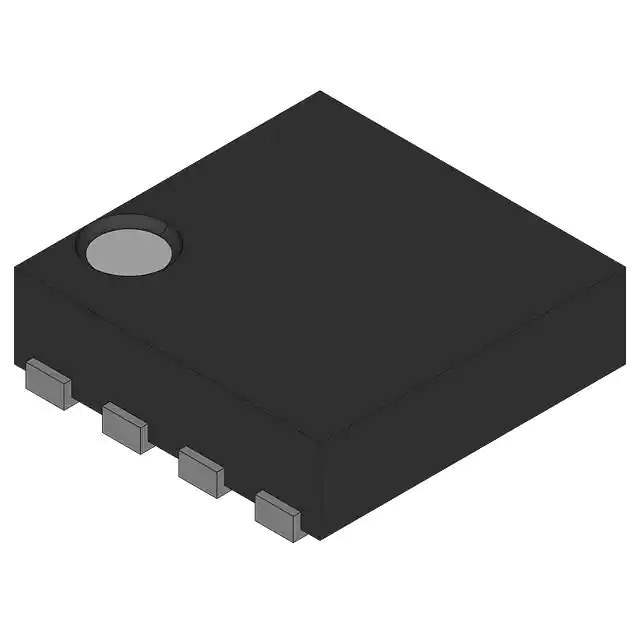

• Compact Packaging: The MAX4944LELA+TG65 is offered in a compact µDFN package, making it an excellent fit for space-constrained applications.

Applications

The versatility of the MAX4944LELA+TG65 allows it to be used in a wide array of applications. It is particularly well-suited for:

• USB peripheral sharing devices
• Desktop and notebook computers
• Docking stations
• USB hub and port isolation
• Cell phones and personal digital assistants (PDAs)

Technical Specifications

The MAX4944LELA+TG65 from Maxim Integrated is an exemplary solution for designers who demand high-quality, high-speed USB switching with robust protection features. Its compact size, coupled with its high-speed capability and low power consumption, makes it an indispensable component for modern USB interface designs.
