The Maxim Integrated MAX4761EWX+T represents a high-performance, low-voltage, quad SPST (single-pole single-throw) analog switch, designed to deliver precision and efficiency in a compact package. This device is ideal for a range of applications, from signal routing to data acquisition systems, where space is at a premium and power efficiency is crucial.

Key Features

• Low Voltage Operation: The MAX4761EWX+T operates at a single +1.8V to +5.5V supply, making it suitable for portable and battery-powered applications.
• Low On-Resistance: With on-resistance as low as 0.5 ohms (typical), this analog switch ensures minimal signal distortion and power loss.
• High Current Handling: The switch can handle up to 300mA (max) continuous current per switch, which is impressive for its size.
• ESD Protection: The device features built-in ESD protection, ensuring robustness and longevity even in harsh electrical environments.

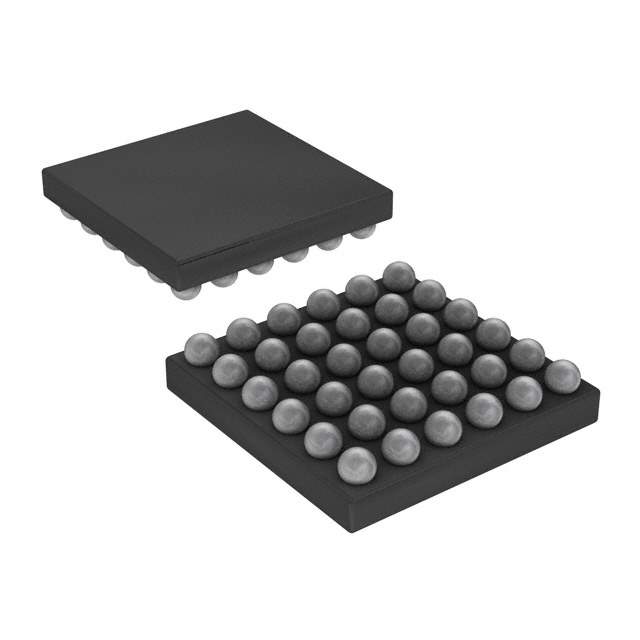

• Compact Package: Available in a small, 36-bump WLP (wafer-level package) measuring just 3mm x 3mm, the MAX4761EWX+T saves valuable board space.

Applications

The versatility of the MAX4761EWX+T makes it suitable for various applications, including:

• Battery-powered devices
• Audio and video signal routing
• Communication systems
• Data acquisition systems
• Medical equipment
• Portable instrumentation

Performance and Quality

The MAX4761EWX+T is designed with Maxim Integrated's commitment to reliability and performance. It features low power consumption, which is essential for extending battery life in portable applications. Additionally, the switch's high bandwidth and low crosstalk characteristics ensure signal integrity, making it an excellent choice for high-frequency and precision analog applications.

With its combination of features, the Maxim Integrated MAX4761EWX+T analog switch is a versatile component that meets the demands of modern electronic designs requiring high performance in a small footprint.
