Maxim Integrated MAX4717ETB+ Low-Voltage, SPDT Analog Switch

The MAX4717ETB+ from Maxim Integrated is a high-performance, single-pole/double-throw (SPDT) analog switch designed to deliver precision and efficiency for a wide range of applications. It operates within a low-voltage range of 1.6V to 3.6V, making it an ideal choice for portable and battery-powered devices where power conservation is crucial.

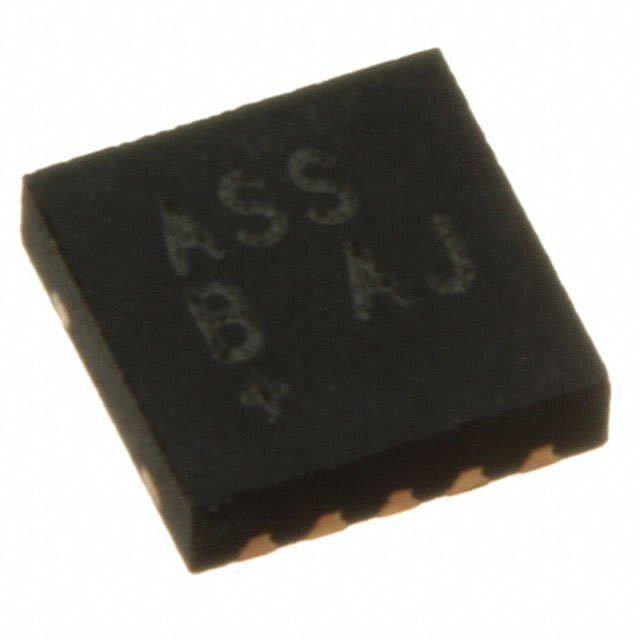

This compact switch is housed in a space-saving, 10-pin TDFN (3mm x 3mm) package, which is perfect for applications where board space is at a premium. The MAX4717ETB+ boasts a low on-resistance of 0.6 ohms (typical) at 2.7V, ensuring minimal signal distortion and power loss across the switch. Additionally, the device features a low crosstalk and off-isolation, which is essential for maintaining signal integrity in sensitive analog signal paths.

With its break-before-make switching action, the MAX4717ETB+ prevents signal overlap and ensures a clean, transient-free switch transition. This characteristic is particularly important in audio and data multiplexing applications, where signal clarity is paramount.

The MAX4717ETB+ is also equipped with fault protection against overvoltage up to +5.5V, even when the switch is powered off. This feature provides an added layer of safety for the connected components, protecting them from potential damage due to unexpected voltage spikes.

Its versatile control logic is compatible with both 1.8V and 3.3V logic levels, which allows for easy integration into various system designs without the need for level-shifting circuits. The MAX4717ETB+ is suitable for a variety of applications, including signal routing, battery-powered devices, portable instrumentation, audio and video signal routing, and communication systems.

In summary, the Maxim Integrated MAX4717ETB+ analog switch offers a blend of performance, power efficiency, and compact form factor, making it an excellent choice for designers looking to optimize their systems for both space and power consumption without compromising on signal quality.
