Maxim Integrated MAX4524EUB-T Analog Switch

The MAX4524EUB-T from Maxim Integrated is a versatile, precision, dual analog switch that offers high performance in a micro-sized package. Designed to operate from a single +1.8V to +5.5V supply, this component is a perfect fit for a wide range of applications including battery-powered devices, portable instruments, and communication systems.

With its low on-resistance (R_ON) of just 100 ohms max and R_ON matching between channels within 2 ohms max, the MAX4524EUB-T ensures minimal signal distortion and excellent channel-to-channel uniformity. This makes it an excellent choice for multiplexing/demultiplexing applications, audio signal routing, and other scenarios where signal integrity is critical.

The MAX4524EUB-T features a unique design that provides low charge injection (10pC max), low power consumption (1µW max), and an ESD tolerance of ±2000V, which helps to protect the device in harsh electrical environments. Additionally, the switch's high off-isolation of -83dB at 1MHz reduces signal crosstalk, thus maintaining the purity of the signal path.

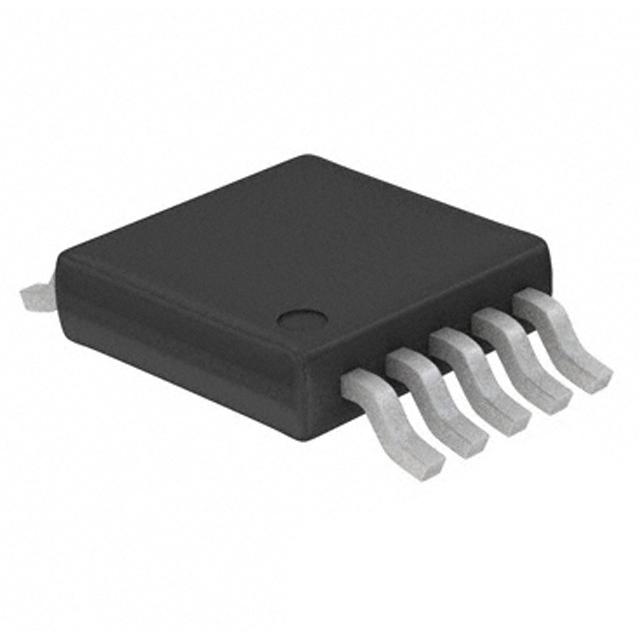

Encased in a compact 10-pin µMAX package, the MAX4524EUB-T is designed for space-constrained applications. Its small footprint does not compromise on functionality; the switch supports fast switching speeds (t_ON of 175ns and t_OFF of 145ns), which is ideal for high-speed data acquisition systems and sample-and-hold circuits.

The switch's logic inputs are TTL and CMOS compatible, ensuring easy integration into a variety of digital systems. Additionally, the MAX4524EUB-T's break-before-make switching action prevents momentary shorting when switching channels, further enhancing the reliability of the device in multiplexer applications.

Whether you are designing a precision data acquisition system, a portable consumer device, or a high-speed communication platform, the MAX452 Integrated MAX4524EUB-T analog switch offers the performance, reliability, and compact size needed to meet your design requirements.
