The MAX4080EVKIT+ by Maxim Integrated is a comprehensive evaluation kit designed to facilitate the testing and performance assessment of the MAX4080 high-side current-sense amplifier. This evaluation kit enables engineers and developers to quickly prototype and validate designs that incorporate current measurement and monitoring functionalities.

Key Features

• High-Side Current Sensing: The MAX4080 amplifier allows for high-side current sensing, which means it can measure the current flowing through a conductor placed between the power supply and the load without interrupting the ground path.
• Wide Input Common-Mode Range: It operates over a wide common-mode voltage range from 4.5V to 76V, making it suitable for a variety of applications, including automotive and industrial systems.
• High Accuracy: Precision current sensing is achieved through a low offset voltage and high accuracy, which is critical for reliable system performance.
• Easy-to-Use: The evaluation kit is user-friendly, with onboard test points and connectors that simplify the connection to the user’s test setup.
• Flexible Power Supply Options: The kit supports various power supply configurations, allowing users to test the MAX4080 under different conditions.

Applications

The MAX4080EVKIT+ is ideal for a wide range of applications, including:

• Automotive battery monitoring
• Power management systems
• Portable devices
• Industrial control systems

Package Contents

The evaluation kit includes:

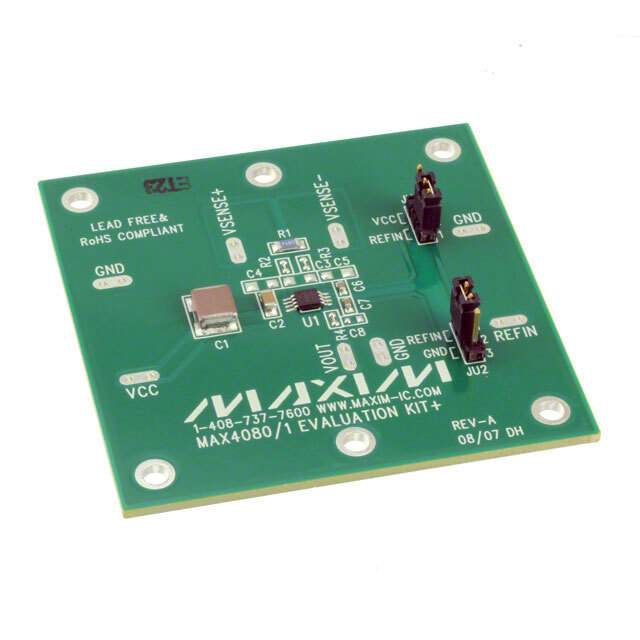

• MAX4080 evaluation board
• Comprehensive documentation with schematics and layout diagrams

With the MAX4080EVKIT+, developers can expedite the design process and achieve a faster time-to-market for products requiring accurate current sensing solutions. Maxim Integrated's commitment to quality and performance is evident in this versatile and reliable evaluation kit.
