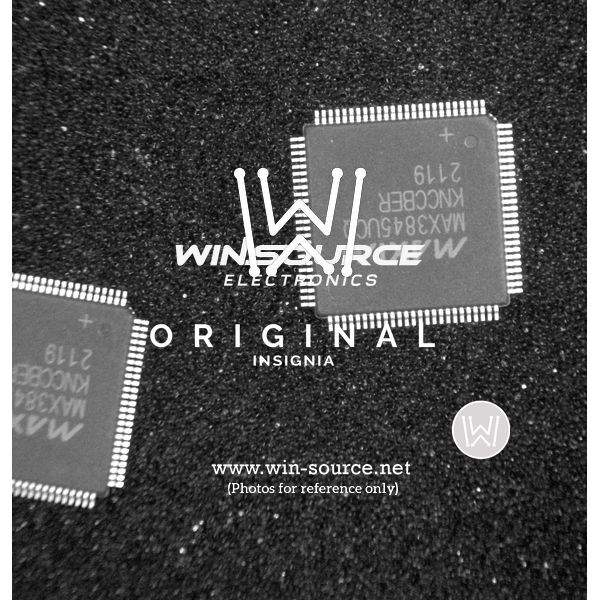

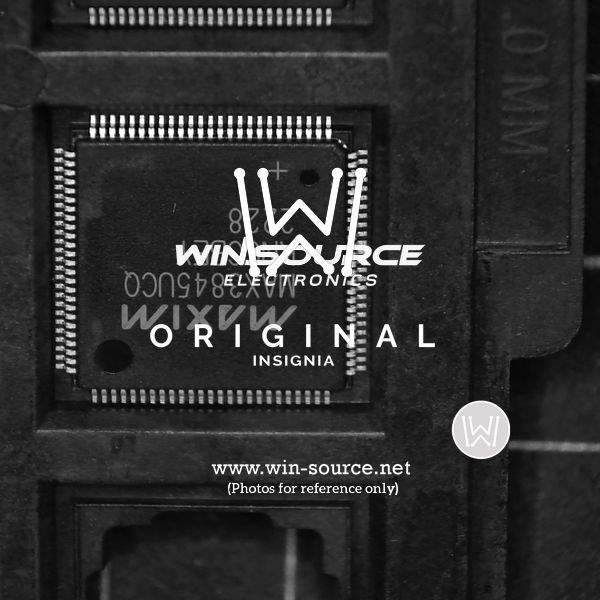

Maxim Integrated MAX3845UCQ+D Product Overview

The MAX3845UCQ+D from Maxim Integrated is a high-performance, 3.3V, quad multiplexer and demultiplexer (mux/demux) IC designed for precision signal routing applications. This device is ideal for use in networking and communication systems where signal integrity and high-speed data transfer are critical. The MAX3845UCQ+D ensures reliable and efficient switching between data channels, making it a perfect fit for complex digital systems.

Key Features

• High-Speed Operation: The MAX3845UCQ+D supports data rates up to 10.7Gbps, making it suitable for high-speed data applications including Gigabit Ethernet, Fiber Channel, and InfiniBand.
• Low Crosstalk: Engineered to minimize signal interference, this device offers extremely low crosstalk, which is essential for maintaining signal integrity in dense electronic environments.
• Low Power Consumption: With an emphasis on energy efficiency, the MAX3845UCQ+D operates with low power dissipation, reducing thermal footprint and saving system power.
• Wide Temperature Range: It operates over an extended temperature range of -40°C to +85°C, ensuring reliability and performance even in harsh environmental conditions.
• Hot-Swap Capability: The device includes hot-swap features that allow for the insertion and removal of cards without the need to power down the system.

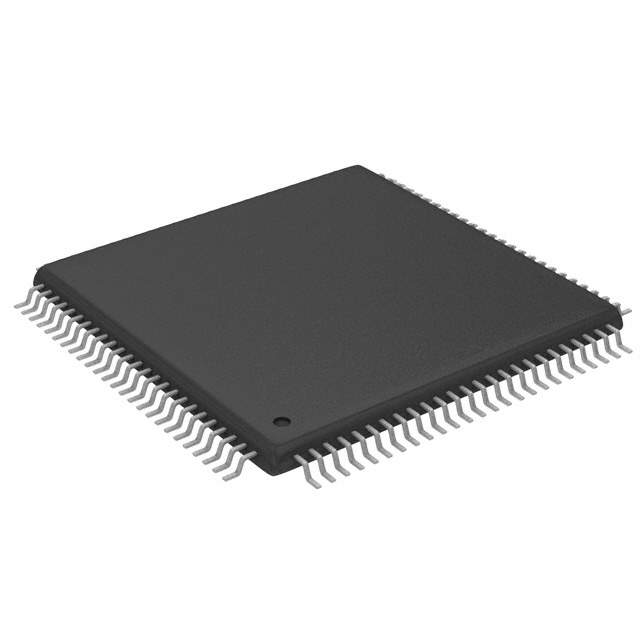

• Small Footprint: Housed in a compact QFN package, the MAX3845UCQ+D saves valuable board space, making it a great choice for space-constrained applications.

Applications

The MAX3845UCQ+D is versatile and can be used in a range of applications, including:

• Data Center Switching Systems
• High-Speed Data Acquisition Systems
• Telecommunications Equipment
• Backplane Interconnects
• Server Farms
• Storage Area Networks (SAN)

With its robust design and advanced features, the MAX3845UCQ+D from Maxim Integrated stands out as a top choice for designers looking to enhance the performance and efficiency of their high-speed communication and networking solutions.
