Same model may have multiple batches, images only for reference.

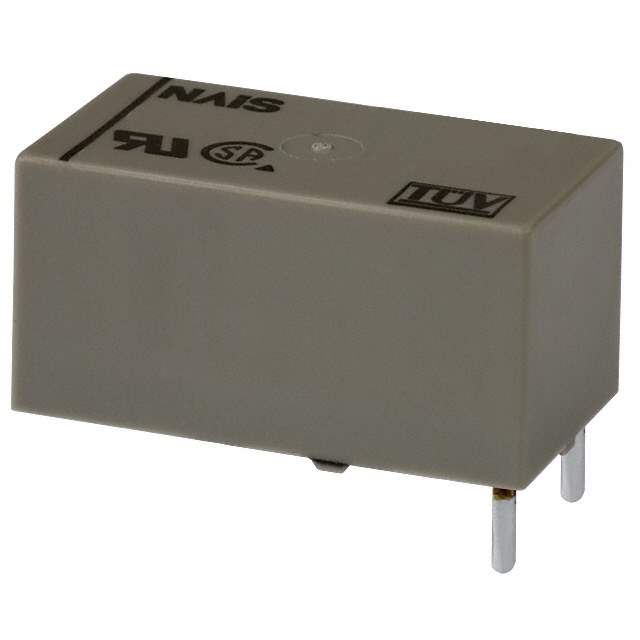

DSP1A-L2-DC24V Real Image
Same model may have multiple batches, images only for reference.

DSP1A-L2-DC24V

Part No DSP1A-L2-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 24V  /  General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DSP
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 12.5 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 19.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.92 kOhms
Base Product Number DSP1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Other Names 255-1619-NDR,255-1619
Standard Package 50
Win Source Part Number 972706-DSP1A-L2-DC24V
Ultra Librarian 3D Model Ultra Librarian DSP1A-L2-DC24V CAD Model

Description

The Panasonic Electric Works manufactured electronic component with Win Source Part Number 972706-DSP1A-L2-DC24V belongs to the Relays>Power Relays, Over 2 Amps category.

  • Product Type: dual coil latching relay
  • Coil Voltage: 24VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: silver tin oxide (AgSnO)
  • Contact Rating: 8 A
  • Switching Voltage: 250VAC, 30VDC - Max
  • Temperature Range: -40°C ~ 60°C
  • RoHS Compliant: Yes
