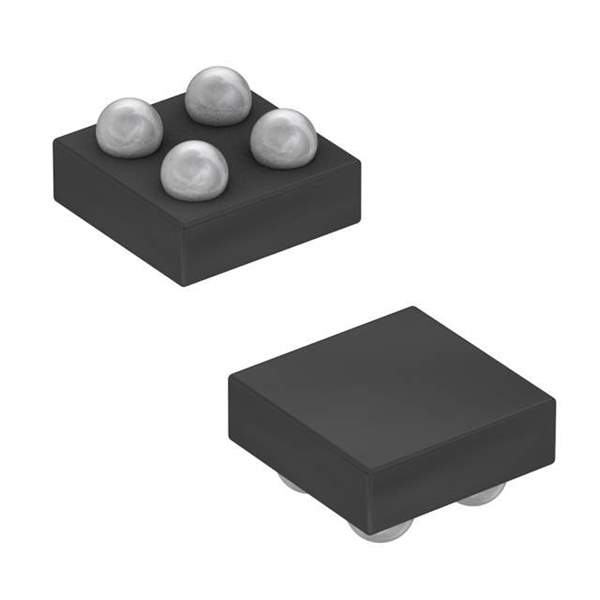

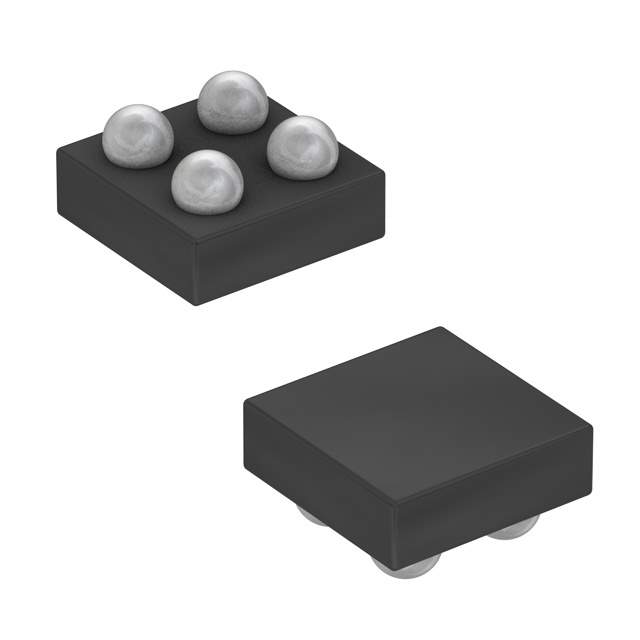

Maxim Integrated MAX2208EBS+T10 RF Detector

The MAX2208EBS+T10 from Maxim Integrated is a state-of-the-art RF detector designed for precision signal detection and measurement. This highly integrated device is ideal for a wide range of applications, including automatic gain control (AGC) systems, power amplifier (PA) control, transmitter antenna VSWR protection, and RSSI (Received Signal Strength Indicator) for terminal and base station applications.

Equipped with a sophisticated envelope detection scheme, the MAX2208EBS+T10 is capable of accurately detecting RF signals over a wide frequency range from 30MHz to 2.5GHz. This makes it suitable for use in various wireless communication systems such as GSM, CDMA, WCDMA, LTE, and more. Its dynamic range of -45dBm to 0dBm (reference 50Ω) allows for precise signal measurement across different signal strengths.

The device operates on a single supply voltage ranging from 2.7V to 5.5V, which provides flexibility in terms of power requirements and ensures compatibility with a variety of circuit designs. Additionally, the MAX2208EBS+T10 boasts a low operating current of 1.4mA and a shutdown current of just 0.1µA, which contributes to the energy efficiency of the overall system.

The MAX2208EBS+T10 comes in a small, lead-free, 4-bump UCSP (Ultra Chip-Scale Package) with a footprint measuring just 1mm x 1mm. This compact size allows for easy integration into space-constrained designs without sacrificing performance.

Maxim Integrated's commitment to quality ensures that the MAX2208EBS+T10 is built to the highest standards, providing reliable and consistent performance for critical applications. Whether it's for use in the latest smartphone technology or in sophisticated communication infrastructure, the MAX2208EBS+T10 is an excellent choice for designers seeking a high-performance, space-efficient RF detector.
