Maxim Integrated's MAX16903SATB33/V+T Automotive Step-Down Converter

The MAX16903SATB33/V+T from Maxim Integrated is a high-efficiency, automotive-grade step-down converter designed to provide a reliable power supply solution for modern vehicle applications. This compact and robust device is engineered to meet the stringent requirements of the automotive industry, providing a fixed 3.3V output voltage with up to 1A of current. Its wide input voltage range of 3.5V to 28V makes it versatile for various automotive power systems, including those subjected to cold-crank and stop-start conditions.

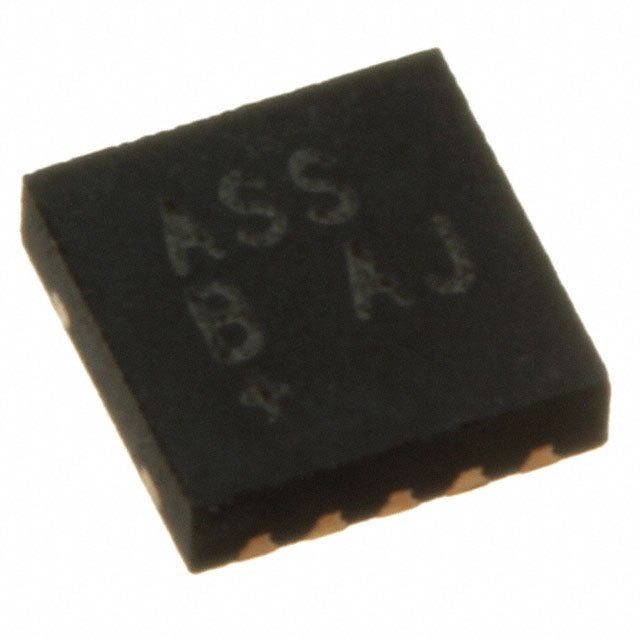

Encased in a small, thermally-enhanced TDFN-10 package, the MAX16903SATB33/V+T offers a space-saving footprint for space-constrained automotive environments. It features a peak efficiency of 90%, which minimizes power loss and helps in maintaining thermal performance even under full load conditions. The device operates at a fixed switching frequency of 2.1MHz, which allows the use of small external components, thereby reducing the overall solution size and cost.

One of the key benefits of the MAX16903SATB33/V+T is its robust protection features. It includes overcurrent protection, overtemperature protection, and undervoltage lockout, ensuring reliable operation and safeguarding against various fault conditions. The device also boasts a low quiescent current, which is crucial for preserving battery life in applications that require a continuous power supply even when the vehicle is off.

Designed with electromagnetic interference (EMI) in mind, the MAX16903SATB33/V+T employs frequency spread spectrum and other techniques to minimize radiated and conducted emissions, making it compliant with the CISPR 25 Class 5 automotive EMI standard. This ensures that the device does not interfere with other electronics in the vehicle, such as radio and navigation systems.

The MAX16903SATB33/V+T is an ideal choice for powering automotive applications such as infotainment systems, advanced driver-assistance systems (ADAS), and other electronic modules. Its reliability, efficiency, and compact design, coupled with Maxim Integrated's reputation for quality, make it a top selection for automotive power design engineers looking to enhance system performance and longevity.
