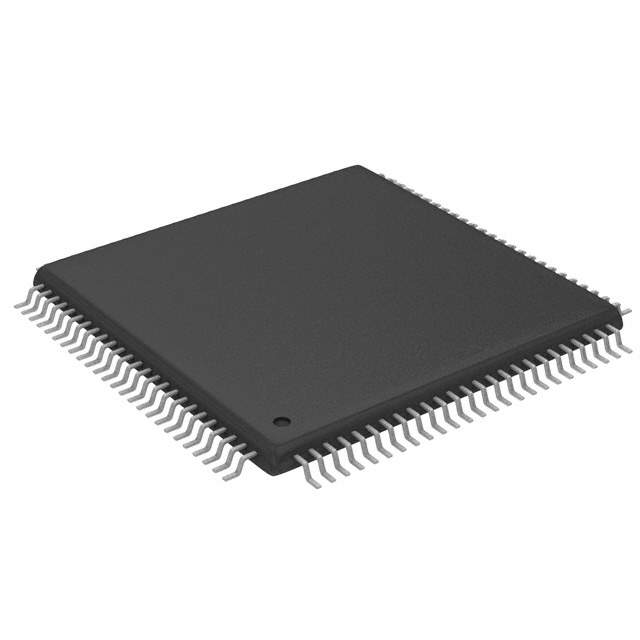

The MAX1436BECQ+D from Maxim Integrated is a high-performance, low-power, 14-bit, 105Msps, analog-to-digital converter (ADC) that is designed to provide excellent dynamic performance and flexibility. This ADC is part of Maxim's extensive line of data converters that are known for their reliability and precision, making it an ideal choice for a wide range of applications, including medical imaging, data acquisition systems, and communication infrastructure.

Key Features

• Resolution: 14-bit resolution ensures high precision in digital representation of analog signals.
• Sampling Rate: With a maximum sampling rate of 105Msps (Mega-samples per second), this ADC is capable of converting high-frequency analog signals into digital data without losing fidelity.
• Power Efficiency: The device operates with low power consumption, making it suitable for power-sensitive applications.
• Input Range: The flexible input range allows for a variety of signal amplitudes to be accurately digitized.
• Interface: It features a parallel LVDS (Low-Voltage Differential Signaling) output interface, which ensures high-speed data transfer with reduced noise.

Applications

The MAX1436BECQ+D ADC's advanced features make it highly versatile for numerous applications. It is particularly well-suited for:

• High-speed data acquisition systems
• Medical imaging equipment such as MRI and CT scanners
• Wireless and wired broadband communication
• Instrumentation and control systems
• Professional video equipment

Technical Specifications

Parameter Value Resolution 14-bit Max Sampling Rate 105Msps Input Type Differential Supply Voltage 3.3V Operating Temperature -40°C to +85°C

Overall, the MAX1436BECQ+D ADC by Maxim Integrated stands out for its high-speed performance, accuracy, and efficiency, making it a top choice for designers looking for a reliable ADC solution.
