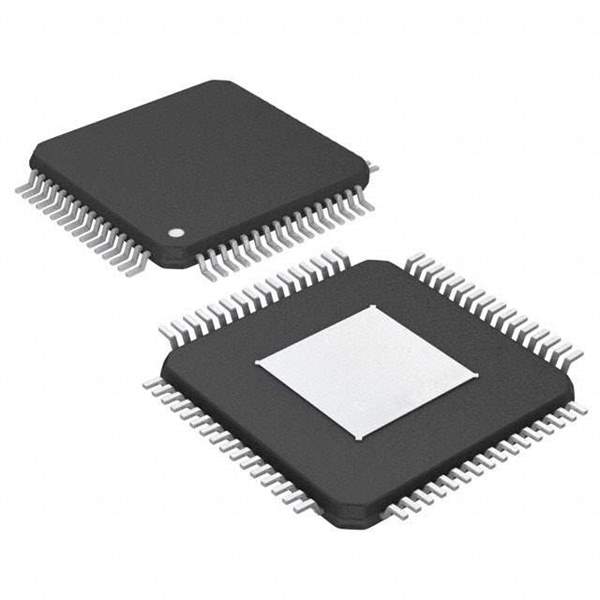

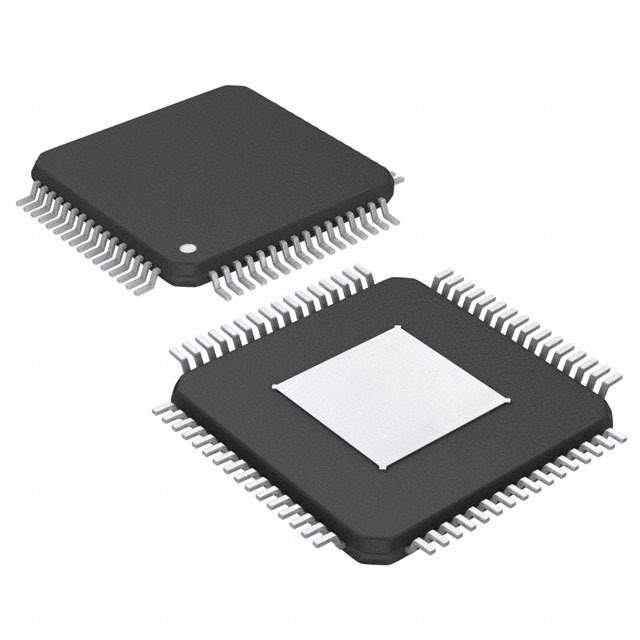

Maxim Integrated MAX11049ECB+T Analog-to-Digital Converter

The MAX11049ECB+T is a high-performance, 16-channel, 16-bit analog-to-digital converter (ADC) from Maxim Integrated, designed to provide exceptional accuracy and precision for advanced industrial, medical, and communication systems. This ADC operates on a single 5V supply and features a flexible input range, making it an ideal choice for a wide array of applications requiring high-resolution data acquisition.

With its simultaneous sampling capability, the MAX11049ECB+T ensures that all 16 channels are sampled at the same time, which is critical for applications where phase information between channels is important, such as in phased array radar systems or power quality monitoring. The device boasts a maximum sample rate of 200ksps, allowing for the capture of fast transient signals without sacrificing performance.

The MAX11049ECB+T comes in a compact 64-pin ECB+T package, which saves board space and is suitable for densely packed PCB designs. Its integrated features include an internal reference, a temperature sensor, and a fault protection up to ±16.5V, which helps to safeguard the ADC and the downstream components from damage due to overvoltage events.

Another key feature of this ADC is its exceptional dynamic performance, which includes a 92dB signal-to-noise ratio (SNR) and a 102dB spurious-free dynamic range (SFDR). This ensures low noise and high fidelity in signal conversion, making it suitable for high-precision measurements in scientific instrumentation and audio processing.

For ease of integration, the MAX11049ECB+T supports a SPI-compatible serial interface, allowing for straightforward communication with microcontrollers and digital signal processors. The device also includes a daisy-chain feature, enabling the cascading of multiple ADCs for systems that require more than 16 channels without the need for additional control lines.

Maxim Integrated's commitment to quality and reliability is evident in the MAX11049ECB+T, which is specified for operation over the industrial temperature range of -40°C to +85°C. Whether for data acquisition, process control, or any application demanding high-resolution and simultaneous sampling, the MAX11049ECB+T stands out as a robust and versatile solution.
