Product Overview: MAX1062AEUB+ from Maxim Integrated

The MAX1062AEUB+ is a high-performance, low-power, 12-bit analog-to-digital converter (ADC) from Maxim Integrated, designed to deliver exceptional accuracy and speed for a wide range of applications. This ADC is a perfect choice for systems that require precise data acquisition under power constraints, such as portable instrumentation, medical devices, and industrial control systems.

Featuring a 4-channel multiplexer, the MAX1062AEUB+ can sample multiple analog inputs without the need for external switching components. This integrated multiplexing capability simplifies design and reduces overall system cost. The device operates from a single 2.7V to 3.6V power supply, making it ideal for battery-powered applications, and its power consumption is further minimized with a power-down mode that reduces current draw to just 1µA (typical).

The MAX1062AEUB+ boasts a high-speed serial interface that is compatible with SPI, QSPI, and MICROWIRE protocols, ensuring easy integration with most digital systems. Its 12-bit resolution and 300ksps sampling rate provide the precision and speed necessary for demanding signal processing tasks. The device also includes an internal 2.5V reference, although an external reference can be used for applications requiring a different reference voltage.

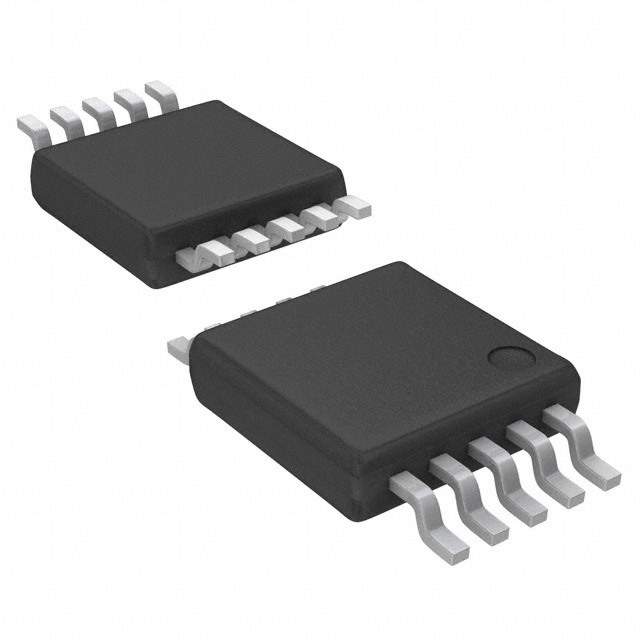

Enclosed in a compact 10-pin µMAX package, the MAX1062AEUB+ is engineered for space-constrained environments. Its small footprint does not compromise performance, making it an excellent choice for portable and miniaturized electronic systems.

Key features of the MAX1062AEUB+ include:

• 12-bit resolution with no missing codes
• 4-channel single-ended inputs with internal multiplexer
• 300ksps sampling rate
• Low power consumption with power-down mode
• Single-supply operation: 2.7V to 3.6V
• High-speed serial interface (SPI/QSPI/MICROWIRE Compatible)
• Internal 2.5V reference (external reference can be used)
• Compact 10-pin µMAX package

Overall, the MAX1062AEUB+ from Maxim Integrated is a versatile and efficient solution for precise analog-to-digital conversion in a variety of applications where space and power are at a premium.
