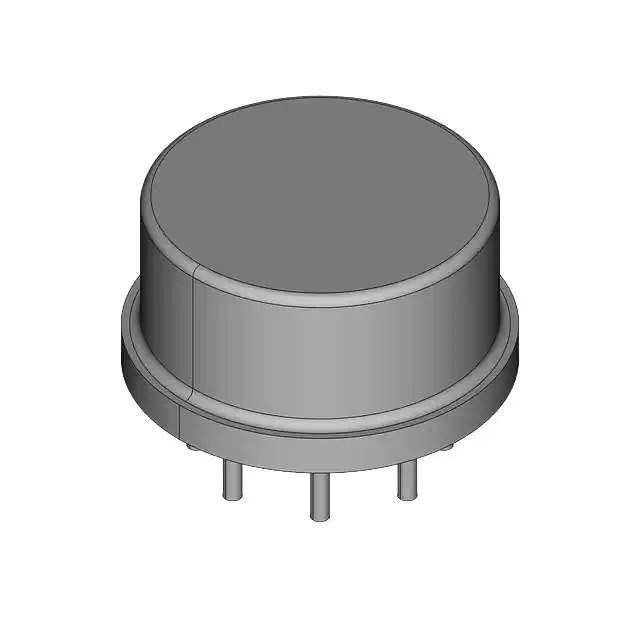

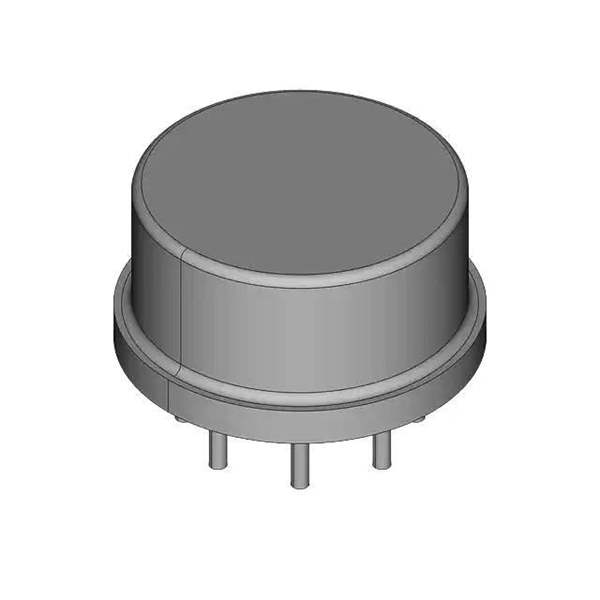

Maxim Integrated ICL7650CTV Operational Amplifier

The ICL7650CTV from Maxim Integrated stands as a testament to precision and reliability in the field of operational amplifiers. This high-performance, chopper-stabilized device is meticulously engineered to provide ultra-low input offset voltage and drift, making it an ideal choice for applications that demand the highest level of accuracy and stability over time and temperature.

With its exceptional characteristics, the ICL7650CTV is particularly well-suited for use in instrumentation and measurement systems, where it ensures that the integrity of the signal is maintained, providing precise readings and consistent performance. Its chopper-stabilized design effectively eliminates the 1/f noise that is commonly associated with operational amplifiers, leading to a cleaner, more stable output signal.

The device features a wide operating voltage range, accommodating supply voltages from ±4.5V to ±8V. This flexibility allows designers to integrate the ICL7650CTV into a variety of circuits without the need for additional power supply configurations. Additionally, its low power consumption makes it an excellent choice for battery-operated devices, where power efficiency is a critical factor.

Another hallmark of the ICL7650CTV is its high open-loop gain, which ensures that the amplifier can maintain its precision even with significant signal amplification. This characteristic, combined with its low input bias current, makes it particularly adept at handling high-impedance signal sources, preserving signal fidelity throughout the amplification process.

Maxim Integrated has packaged the ICL7650CTV in a convenient, space-saving 14-pin CERDIP (Ceramic Dual In-line Package), ensuring robustness and longevity, even in harsh environmental conditions. This packaging also facilitates easy integration into existing circuit designs, allowing for a seamless upgrade path for systems requiring enhanced precision and stability.

In summary, the ICL7650CTV operational amplifier is an excellent choice for designers looking to enhance the accuracy and stability of their electronic systems. With its low offset voltage, minimal drift, and noise reduction capabilities, it sets the standard for precision amplification solutions.
