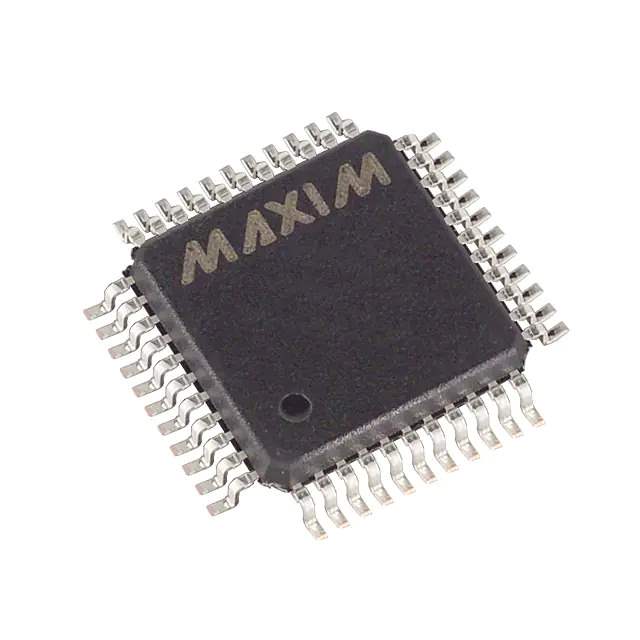

Maxim Integrated ICL7135CMH+D Precision Analog-to-Digital Converter

The ICL7135CMH+D from Maxim Integrated is a highly precise and robust 4 1/2 digit, BCD output, analog-to-digital converter (ADC) that offers exceptional performance for a wide range of data acquisition and measurement applications. This integrated circuit is designed to provide accurate digital representations of analog signals, making it an essential component for systems that require precise numerical readings from sensors and other analog inputs.

Key Features

• High Resolution: The ICL7135CMH+D provides a 4 1/2 digit resolution with a count capability of up to 19999, allowing for highly detailed and accurate readings.
• Low Power Consumption: Engineered for efficiency, this ADC operates with low power requirements, making it suitable for battery-powered or energy-sensitive applications.
• Dual Slope Integration: Utilizing a dual-slope integration technique, the device ensures excellent noise rejection and stability, resulting in reliable and consistent performance.
• BCD Output: The BCD (Binary-Coded Decimal) output format facilitates easy interfacing with digital displays and microprocessors, simplifying system design and integration.
• Auto-Zero Functionality: The auto-zero feature minimizes offset errors, enhancing the overall accuracy of the measurements.
• Overrange and Underrange Indication: Built-in indicators for overrange and underrange conditions provide immediate feedback on signal status, helping to prevent data misinterpretation.
• Simple External Oscillator: An external oscillator can be used to set the conversion rate, offering flexibility in controlling the speed of data acquisition.

Applications

The ICL7135CMH+D is well-suited for a variety of applications that demand high precision and reliability. It is commonly used in:

• Digital multimeters and voltmeters
• Data logging systems
• Process control instrumentation
• Laboratory equipment
• Industrial automation systems

With its combination of accuracy, low power consumption, and ease of integration, the ICL7135CMH+D from Maxim Integrated stands out as a top choice for engineers and designers looking to enhance the performance of their analog-to-digital conversion systems.
