Introducing the DS3911T+ from Maxim Integrated

The DS3911T+ is a state-of-the-art, high-performance, nonvolatile (NV) digital potentiometer designed by Maxim Integrated to deliver precision and reliability for a wide range of applications. This innovative component is an ideal solution for applications requiring digitally controlled resistance adjustments. The DS3911T+ offers a robust feature set, making it perfect for fine-tuning resistance values in various electronic circuits without the need for manual potentiometer adjustments.

Key Features

• Nonvolatile Memory: The DS3911T+ incorporates nonvolatile memory to retain the resistance settings even when the power is turned off, ensuring consistent performance and quick start-up times in all applications.
• High Resolution: The device offers a high resolution with 256 positions, allowing for precise adjustments to the resistance value.
• Digital Interface: With its I²C-compatible serial interface, the DS3911T+ can be easily integrated into digital systems, enabling remote adjustments and automated control within complex electronic systems.
• Low Temperature Coefficient: The potentiometer's low temperature coefficient ensures stable resistance values across a wide temperature range, which is critical for maintaining accuracy in temperature-sensitive applications.
• Wide Operating Voltage Range: The DS3911T+ operates over a broad voltage range, accommodating various supply levels and enhancing the device's flexibility in different system designs.

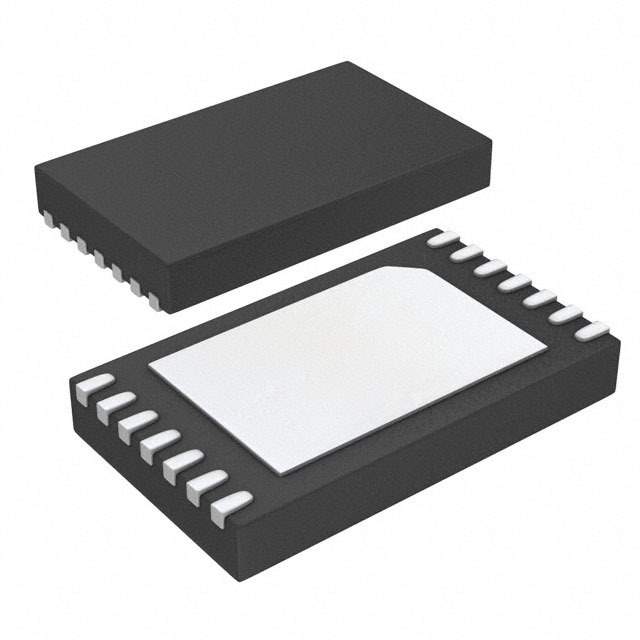

• Compact Packaging: Maxim Integrated has packaged the DS3911T+ in a compact, surface-mount package, making it suitable for space-constrained applications without compromising performance.

Applications

The DS3911T+ is versatile and can be used in a multitude of applications, including:

• Automated device calibration
• Adjustable power supplies
• Volume control in audio systems
• Gain control and offset adjustment in data acquisition systems

With its combination of nonvolatile memory, high resolution, and digital interface, the DS3911T+ from Maxim Integrated is an excellent choice for designers looking to add reliable, precise digital potentiometry to their electronic projects. Its robust design and ease of integration make it a valuable component for both prototyping and mass production.
