Maxim Integrated DS3231MZ Real-Time Clock

The DS3231MZ is a high-precision, temperature-compensated real-time clock (RTC) module from Maxim Integrated that provides an accurate and reliable timekeeping solution for a wide range of applications. This integrated circuit offers the convenience of an I²C interface for easy integration into existing systems and is designed to maintain accurate timekeeping even under varying temperature conditions or in the event of a power failure.

At the heart of the DS3231MZ is an integrated temperature-compensated crystal oscillator (TCXO) and crystal. This combination ensures high accuracy, with a timekeeping error of less than ±5ppm (parts per million) at room temperature, which translates to less than 3 minutes of time deviation per year. The device also features an integrated 32.768 kHz crystal that eliminates the need for external components, thus simplifying design and reducing system costs.

The module includes a battery backup input that allows it to continue timekeeping even when the main power is lost. This feature is critical for applications that require consistent time tracking, such as data loggers, smart meters, and other time-sensitive devices. The DS3231MZ also has two programmable time-of-day alarms and a temperature sensor with a resolution of 0.25°C and an accuracy of ±3°C, which can be used for environment monitoring or system control.

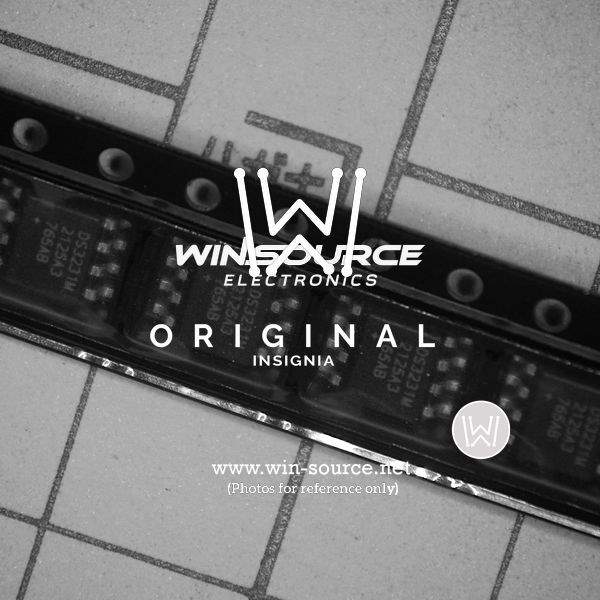

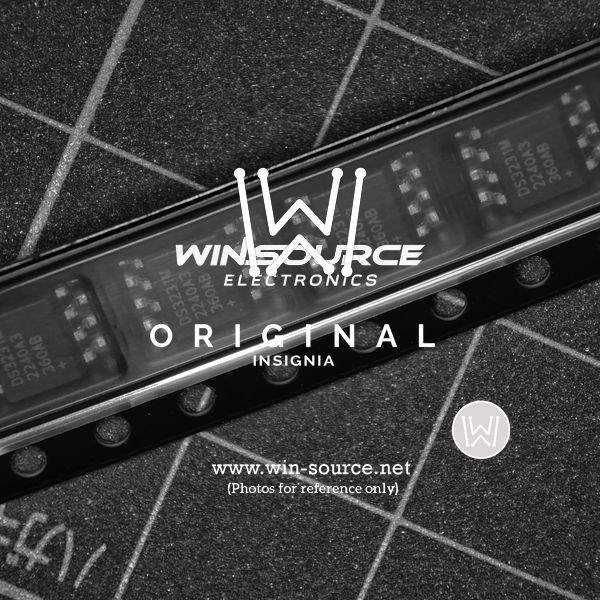

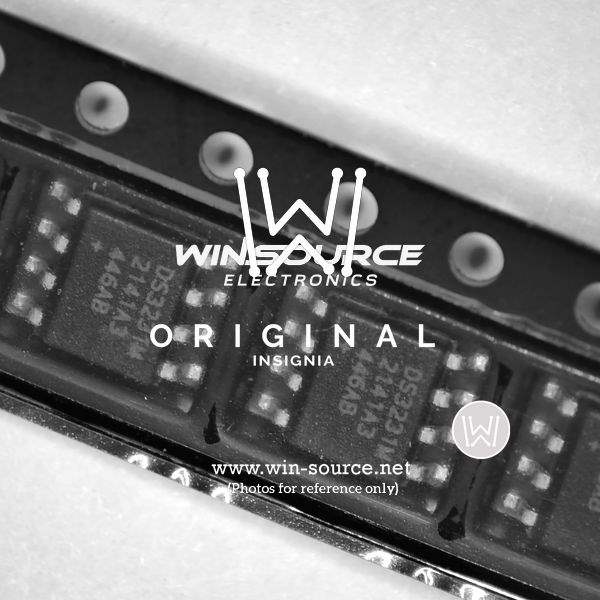

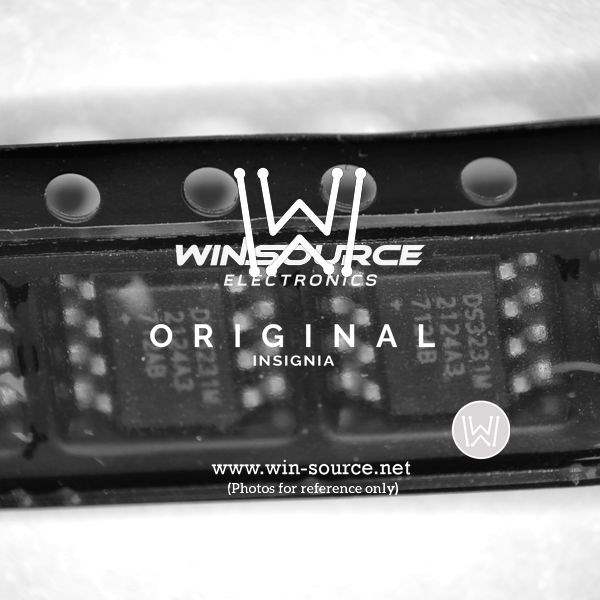

For ease of use, the DS3231MZ supports automatic leap year correction and provides registers for seconds, minutes, hours, day, date, month, and year. The clock operates in either the 24-hour or 12-hour format with an AM/PM indicator. It is available in a compact 8-pin SO (small outline) package, making it ideal for space-constrained applications.

Overall, the Maxim Integrated DS3231MZ is a versatile and reliable choice for any application requiring precise timekeeping, from consumer electronics to industrial systems. Its high stability, low power consumption, and comprehensive feature set make it a go-to solution for designers looking to add a real-time clock to their projects.
