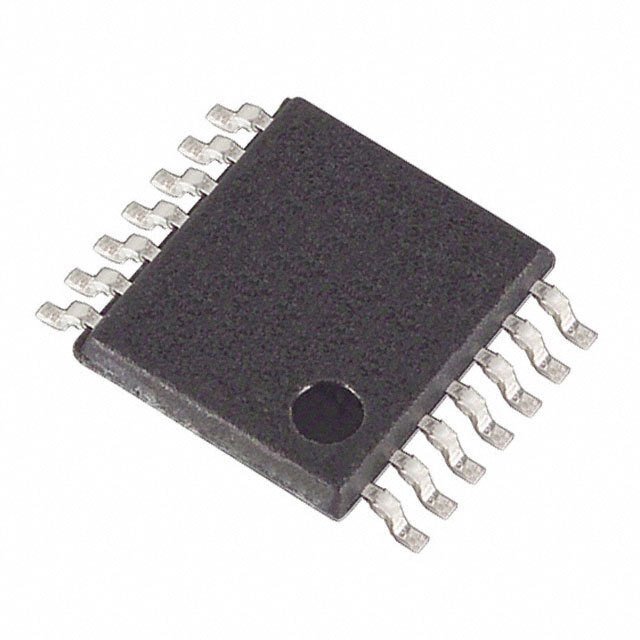

The DS1845E-010+T&R is a versatile, nonvolatile memory and digital potentiometer integrated circuit designed by Maxim Integrated, a renowned leader in the development of innovative analog and mixed-signal products. This component is a perfect solution for applications requiring both digital control and a reliable memory storage system.

Key Features

• Nonvolatile Memory: The device includes EEPROM (Electrically Erasable Programmable Read-Only Memory) which provides robust storage that retains data even when the power is turned off.
• Dual Digital Potentiometers: It boasts two potentiometers with 256-position each, allowing for precise adjustment of voltage and current in a circuit.
• Wide Operating Voltage Range: The DS1845E-010+T&R operates over a broad voltage range of 2.7V to 5.5V, catering to various power requirements.
• High-Resolution Control: With an I²C-compatible interface, it offers high-resolution control over the potentiometer settings and memory.
• Programmable Settings: Users can program the potentiometer wiper positions at power-up, enabling a defined system start-up condition.
• Temperature Range: Designed to function in a wide temperature range, it is suitable for industrial applications with operating temperatures from -40°C to +85°C.

Applications

The DS1845E-010+T&R is ideal for a variety of applications where digital control of voltage, current, or signal paths is required. It is commonly used in:

• Power-supply adjustment
• LCD screen calibration
• LED brightness control
• Audio/Video equipment tuning
• Automotive electronics

Quality and Reliability

Maxim Integrated is committed to delivering high-quality products. The DS1845E-010+T&R is available in a tape and reel (T&R) package, ensuring safe and efficient handling for high-volume manufacturing. With Maxim's rigorous testing and quality control, customers can expect reliable performance and longevity from this integrated circuit.
