Same model may have multiple batches, images only for reference.

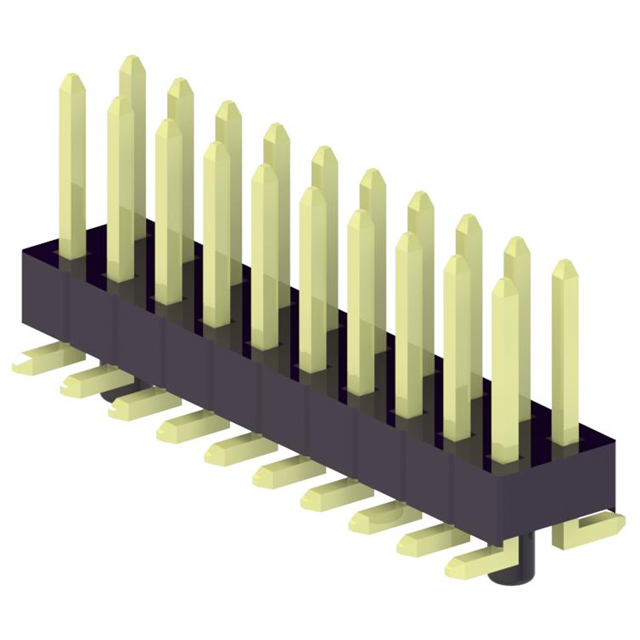

TSHSM-107-D-06-GT-V-LF Real Image
Same model may have multiple batches, images only for reference.

TSHSM-107-D-06-GT-V-LF

Part No TSHSM-107-D-06-GT-V-LF
Manufacturer Major League Electronics
Catalog Rectangular Connectors
Description .100 Header  /  Connector Header Surface Mount 14 position 0.100" (2.54mm)
Datasheet
TSHSM-107-D-06-GT-V-LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Major League Electronics
Package Bag
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA6T), Nylon 6T
Temperature Range - Operating -40°C ~ 105°C
Insulation Color Black
Current Rating (Amps) 3A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Other Names 2611-TSHSM-107-D-06-GT-V-LF
Standard Package 1
Win Source Part Number 1172532-TSHSM-107-D-06-GT-V-LF
Ultra Librarian 3D Model Ultra Librarian TSHSM-107-D-06-GT-V-LF CAD Model

Description

The TSHSM-107-D-06-GT-V-LF is a board-to-board connector manufactured by Major League Electronics.

  • Type: Board-to-Board Connector
