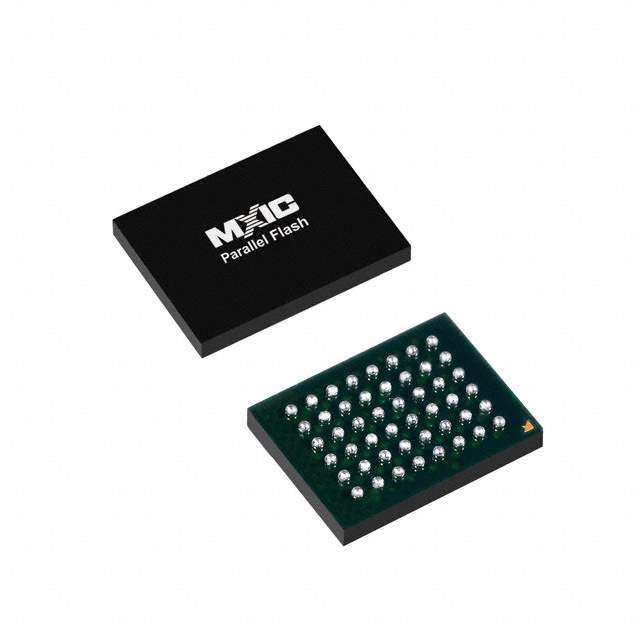

MX29SL800CBXEI-90G Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Macronix
Series MX29SL
Package Tray
Product Status Not For New Designs
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 8Mb (1M x 8)
Memory Interface Parallel
Write Cycle Time - Word, Page 90ns
Access Time 90 ns
Voltage - Supply 1.65V ~ 2.2V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 48-LFBGA, CSPBGA
Supplier Device Package 48-LFBGA, CSP (6x8)
Base Product Number MX29SL800
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Other Names MX29SL800CBXEI90G,1092-1030
Standard Package 480
Win Source Part Number 1081281-MX29SL800CBXEI-90G
Ultra Librarian 3D Model Ultra Librarian MX29SL800CBXEI-90G CAD Model

Description

The MX29SL800CBXEI-90G is a non-volatile memory integrated circuit that is used in various electronic applications.

  • Memory Size: 8Mb (1M x 8)
  • Access Time: 90 ns
  • Voltage Supply: 1.65V to 2.2V
  • Mounting Technology: SMD (SMT)
  • Package: 48-LFBGA, CSPBGA
  • Operating Temperature: -40°C to 85°C (TA)
  • Supplier: Macronix
  • RoHS Compliant: No
