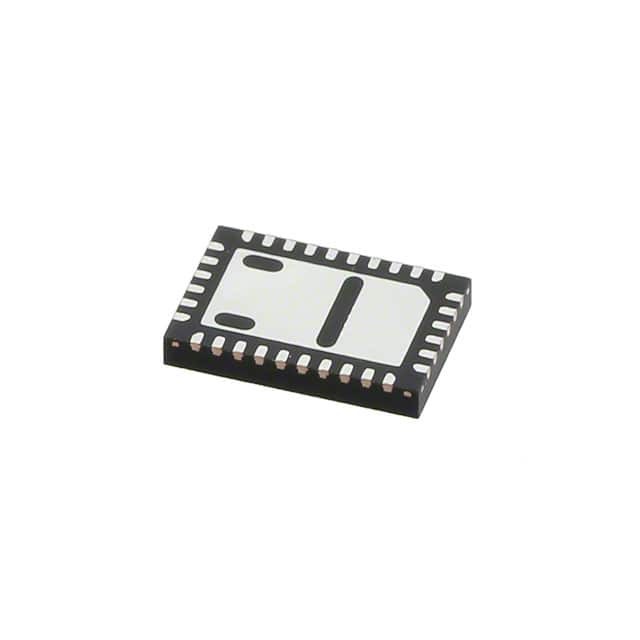

Same model may have multiple batches, images only for reference.
MASW-007071-000100
Same model may have multiple batches, images only for reference.

MASW-007071-000100

Part No MASW-007071-000100
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description IC RF SWITCH SPDT 4GHZ 32QFN / RF Switch IC General Purpose SPDT 50Ohm 32-PQFN (4x6)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr M/A-Com Technology Solutions
Package Tube
Product Status Active
RF Type General Purpose
Topology Absorptive
Circuit SPDT
Frequency Range 0Hz ~ 4GHz
Isolation 30dB (min)
Insertion Loss 1.8dB (max)
Test Frequency 4GHz
P1dB 29dBm
IIP3 46dBm
Impedance 50Ohm
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 32-PowerVFQFN
Supplier Device Package 32-PQFN (4x6)
Base Product Number MASW-007071
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 925156-MASW-007071-000100
Ultra Librarian 3D Model Ultra Librarian MASW-007071-000100 CAD Model

Description

The 925156-MASW-007071-000100 is a general-purpose RF switch designed for use in various applications.

  • Circuit Topology: SPDT
  • Frequency Range: 0Hz to 4GHz
  • Insertion Loss: 1.8dB (max)
  • Isolation: 30dB (min)
  • Voltage Supply: 4.5V to 5.5V
  • Package: Surface mount, 32-PQFN (4x6)
  • Manufacturer: M/A-Com Technology Solutions
