Same model may have multiple batches, images only for reference.

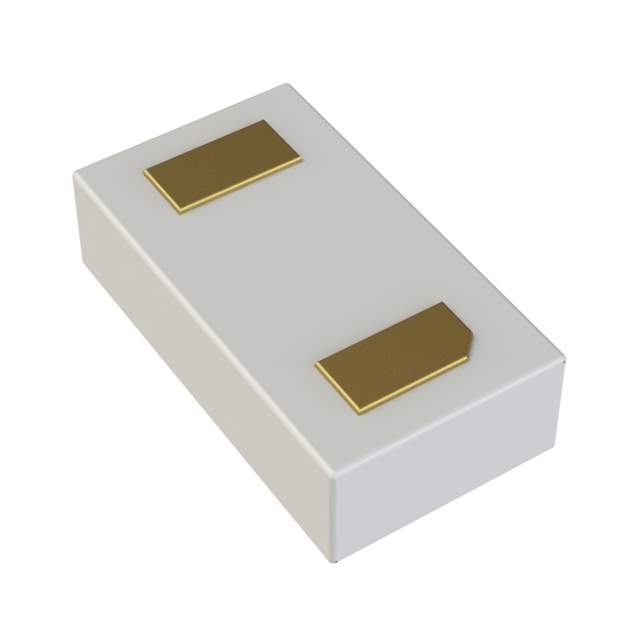

MADP-000907-14020P Real Image
Same model may have multiple batches, images only for reference.

MADP-000907-14020P

Part No MADP-000907-14020P
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description DIODE,SOLDERABLE ALGAAS FC PIN / RF Diode PIN - Single 45V 100 mW Die
Datasheet
MADP-000907-14020P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr MACOM Technology Solutions
Package Tape & Reel
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 45V
Capacitance @ Vr, F 0.03pF @ 10V, 1MHz
Resistance @ If, F 7Ohm @ 10mA, 1GHz
Power Dissipation (Max) 100 mW
Temperature Range - Operating 175°C (TJ)
Package / Case Die
Supplier Device Package Die
Base Product Number MADP-000907
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0040
Other Names 1465-MADP-000907-14020PDKR,1465-MADP-000907-14020PTR,1465-MADP-000907-14020PCT,1465-MADP-000907-14020P-ND
Standard Package 3,000
Win Source Part Number 1128292-MADP-000907-14020P
Ultra Librarian 3D Model Ultra Librarian MADP-000907-14020P CAD Model

Description

The MACOM Technology Solutions MADP-000907-14020PDKR is a PIN-single diode type with a capacitance of 0.03pF @ 10V, 1MHz and a voltage peak reverse of 45V.

  • Type: PIN-single diode
  • Capacitance: 0.03pF @ 10V, 1MHz
  • Voltage Peak Reverse: 45V
  • Power Dissipation: 100 mW
  • Resistance: 7Ohm @ 10mA, 1GHz
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Category: Discrete Semiconductor Products>Diodes - RF
