Same model may have multiple batches, images only for reference.

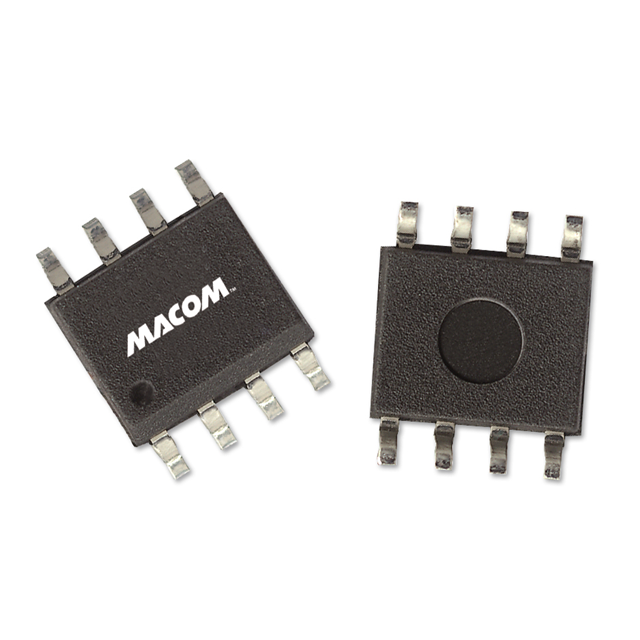

MACPCC0002 Real Image
Same model may have multiple batches, images only for reference.

MACPCC0002

Part No MACPCC0002
Manufacturer M/A-Com Technology Solutions
Catalog RF Directional Coupler
Description COUPLER,PB-EQUIVILENT OF CH20-00  /  RF Directional Coupler General Purpose 824MHz ~ 960MHz 17 ± 2dB 2W 8-SOIC (0.154", 3.90mm Width)
Datasheet
MACPCC0002 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Directional Coupler
Mfr MACOM Technology Solutions
Package Bulk
Coupler Type Standard
Frequency 824MHz ~ 960MHz
Coupling Factor 17 ± 2dB
Applications General Purpose
Insertion Loss 0.3dB
Power - Max 2W
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
MSL Level 1 (Unlimited)
Other Names 1465-MACPCC0002
Standard Package 100
Win Source Part Number 997471-MACPCC0002
Ultra Librarian 3D Model Ultra Librarian MACPCC0002 CAD Model

Description

MACPCC0002 RF Directional Coupler is a standard coupler type.

  • Frequency Range: 824MHz to 960MHz
  • Coupling Factor: 17±2dB
  • Insertion Loss: 0.3dB
  • Power Rating: 2W
  • Package: 8-SOIC
