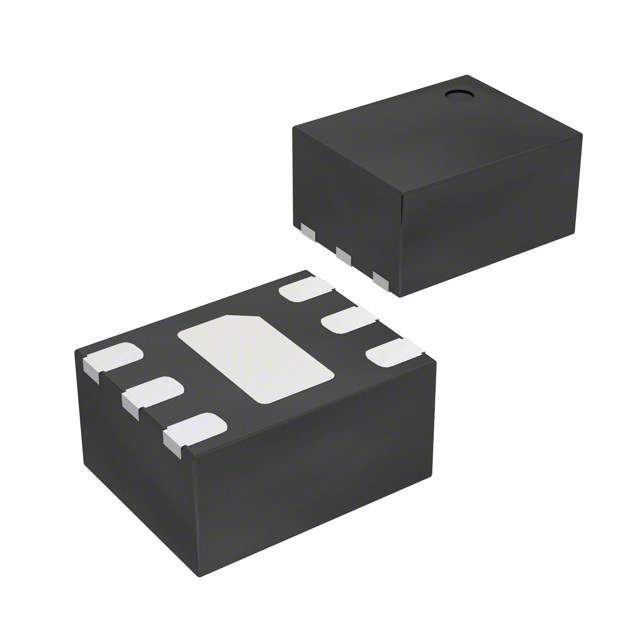

The MAAM-011206-TR3000 from M/A-Com Technology Solutions is a Silicon PIN Diode Driver. It is a monolithic, single-channel driver designed for high-speed switching applications. It is designed to control PIN diodes used in various RF and microwave circuits.

Applications:

• RF Switches: Driving PIN diodes in RF switch matrices.
• Attenuators: Controlling variable attenuators in signal processing chains.
• Phase Shifters: Used in phase shifter circuits for beamforming and other applications.
• Radar Systems: Control of PIN diodes in radar transmit/receive modules.
• Test and Measurement Equipment: Used in automated test systems for controlling RF signals.

Features:

• High Switching Speed: Enables fast switching of PIN diodes.
• Low Control Current: Minimizes power consumption.
• Single Supply Voltage: Simplifies power supply requirements.
• TTL/CMOS Compatible Input: Allows for easy interfacing with digital control circuits.
• Surface Mount Package: Designed for easy integration into printed circuit boards.

Benefits:

• Improved System Performance: Enables fast and precise control of RF signals.
• Simplified Design: Reduces the complexity of RF control circuits.
• Reduced Component Count: Integrates the functionality of multiple discrete components into a single package.
• Cost-Effective Solution: Provides a cost-effective way to control PIN diodes.
• Compact Size: Allows for miniaturization of RF systems.

Additional Details:

The MAAM-011206-TR3000 typically requires a specific DC bias voltage for operation. Refer to the datasheet for detailed electrical specifications, including switching speed, control current, and supply voltage range. The TR3000 suffix likely indicates a specific tape and reel packaging option.
