Same model may have multiple batches, images only for reference.

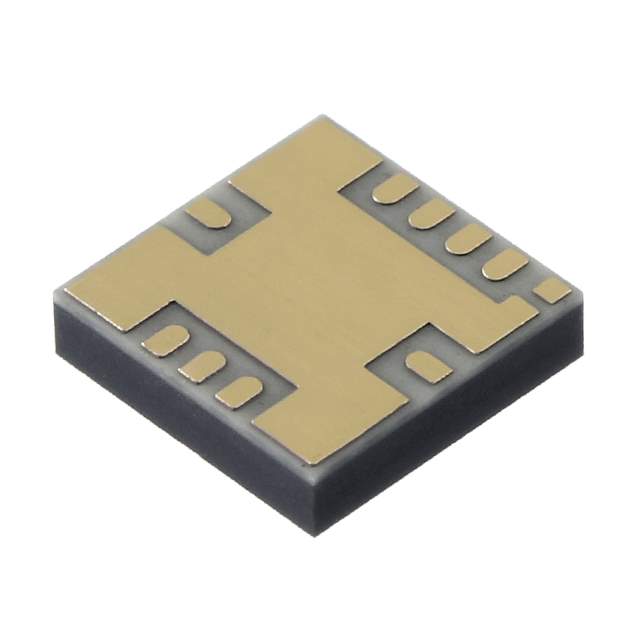

MAAM-011109-TR1000 Real Image
Same model may have multiple batches, images only for reference.

MAAM-011109-TR1000

Part No MAAM-011109-TR1000
Manufacturer M/A-Com Technology Solutions
Catalog RF Amplifiers
Description IC RF AMP GP 10MHZ-40GHZ 9LGA / RF Amplifier IC General Purpose 10MHz ~ 40GHz 9-LGA (5x5)
Datasheet
MAAM-011109-TR1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Amplifiers
Mfr MACOM Technology Solutions
Package Tape & Reel
Frequency 10MHz ~ 40GHz
P1dB 17dBm
Gain 13dB
Noise Figure 3.5dB
RF Type General Purpose
Voltage - Supply ±5V
Current - Supply 190mA
Mounting SMD (SMT)
Package / Case 9-LLGA
Supplier Device Package 9-LGA (5x5)
Base Product Number MAAM-011109
MSL Level 3 (168 Hours)
ECCN MMIC 3A001B2
HTSUS 8542.33.0001
Other Names 1465-1284-2,1465-1284-1,1465-1284-6
Standard Package 1,000
Win Source Part Number 1018125-MAAM-011109-TR1000
Ultra Librarian 3D Model Ultra Librarian MAAM-011109-TR1000 CAD Model

Description

The MAAM-011109 is an RF amplifier used in RF/IF and RFID applications from MACOM Technology Solutions.

  • Application: RF/IF and RFID
  • Frequency Range: 10MHz to 40GHz
  • Gain: 13dB
  • Noise Figure: 3.5dB
  • RF Type: General Purpose
  • Voltage Supply: ±5V
  • Package: 9-LLGA
  • Packaging: Tape and Reel
  • Supplier Device Package: 9-LGA (5x5)
  • Alternative Part: 1465-1284-2
  • HTSUS Code: 8542.33.0001
