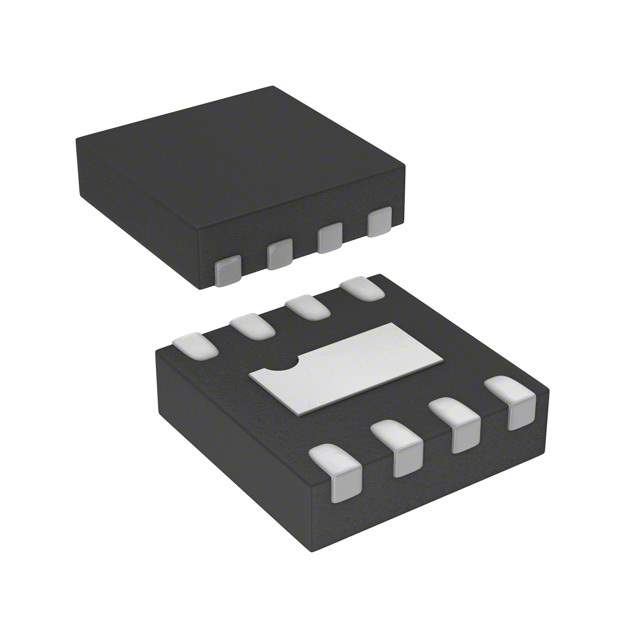

MAAL-011134-TR3000

Part No MAAL-011134-TR3000
Manufacturer M/A-Com Technology Solutions
Catalog RF Amplifiers
Description Low Noise Amplifier | IC RF AMP 700 MHZ - 6 GHZ 8DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Frequency 700MHz ~ 6GHz
P1dB 15dBm
Gain 15dB
Noise Figure 0.85dB
RF Type 802.11ac
Supply Voltage (V) 3V ~ 5V
Supply Current 60mA
Test Frequency 5.8GHz
Manufacturer Package 8-VFDFN Exposed Pad
Supplier Device Package 8-PDFN (2x2)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1211516-MAAL-011134-TR3000
Manufacturer Homepage www.macomtech.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MAAL-011134-TR3000 CAD Model

Description

The MAAL-011134-TR3000 is an RF amplifier from M/A-Com Technology Solutions.

  • Application: 802.11ac
  • Frequency Range: 700MHz ~ 6GHz
  • Gain: 15dB
  • Noise Figure: 0.85dB
  • P1dB: 15dBm
  • Supply Current: 60mA
  • Package: 8-PDFN (2x2)
  • Feature: Exposed pad
  • Supply Voltage Range: 3V ~ 5V
