Same model may have multiple batches, images only for reference.

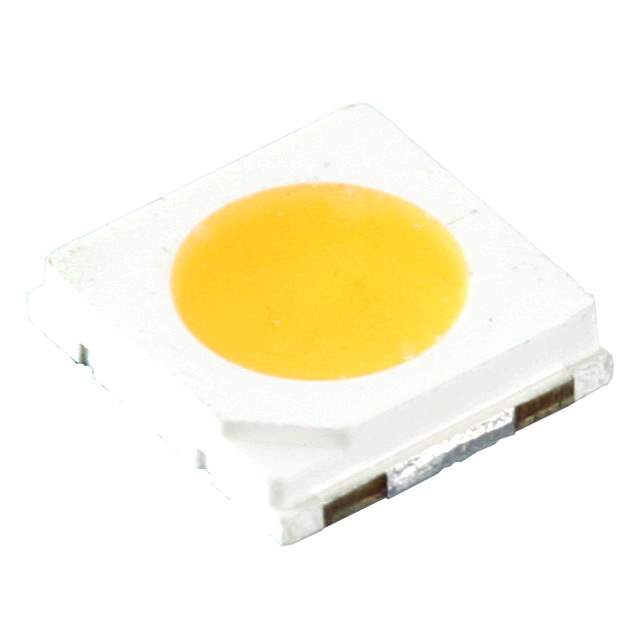

MXA9-PW30-H001 Real Image
Same model may have multiple batches, images only for reference.

MXA9-PW30-H001

Part No MXA9-PW30-H001
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON WARM WHITE 3000K 2SMD / LED Lighting series White, Warm 3000K 2.9V 100mA 115° 1414 (3535 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON 3535L
Package Tape & Reel
Color White, Warm
CCT (K) 3000K
Flux @ 25°C, Current - Test 37lm (Typ)
Current - Test 100mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 128 lm/W
CRI (Color Rendering Index) 90
Current - Max 300mA
Viewing Angle 115°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package 3535
Dimension 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) 0.031" (0.80mm)
Thermal Resistance of Package 18°C/W
Base Product Number MXA9-PW30
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1531-6,1416-1531-1,1416-1531-2
Standard Package 5,000
Win Source Part Number 1081318-MXA9-PW30-H001
Ultra Librarian 3D Model Ultra Librarian MXA9-PW30-H001 CAD Model

Description

The MXA9-PW30-H001 is an optoelectronic component from the LUXEON 3535L series, manufactured by Lumileds.

  • Mounting Type: Surface-Mount Device
  • Package: Tape and Reel
  • Viewing Angle: 115 degrees
  • Forward Voltage: 2.9V
  • Color Temperature: 3000K
  • CRI: 90
  • Luminous Flux: 37lm (typ) @ 25°C Current Test
  • Lumens/Watt: 128 lm/W
  • Win Source Part Number: 1081318
