Same model may have multiple batches, images only for reference.

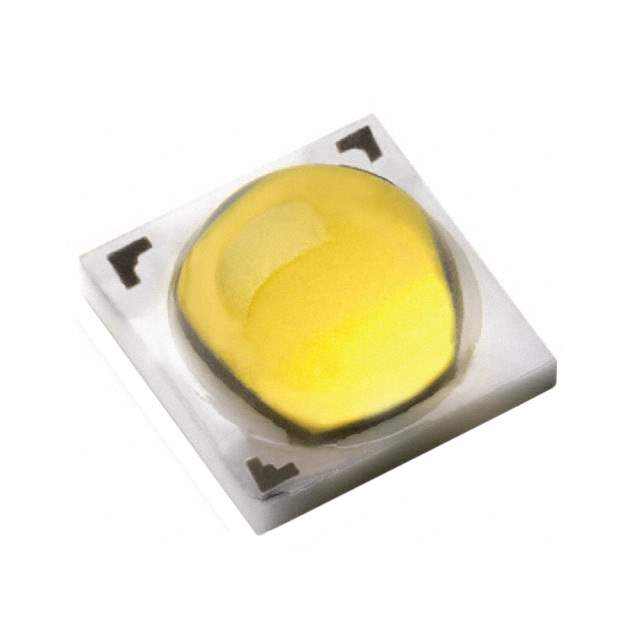

LXH8-FW30-5 Real Image
Same model may have multiple batches, images only for reference.

LXH8-FW30-5

Part No LXH8-FW30-5
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED Uni-Color White 3000K 80 2-Pin T/R / LED LUXEON WARM WHITE 3000K 3SMD
Datasheet
LXH8-FW30-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumileds
Series LUXEON T
Packaging Reel package
Color White, Warm
CCT (K) 3000K 5-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 197 lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.8V
Lumens/Watt @ Current - Test 101 lm/W
CRI (Color Rendering Index) 80
Current - Max 1.2A
Viewing Angle 120°
Mounting SMD
Package 2-SMD, No Lead, Exposed Pad
Dimension 0.146" L x 0.146" W (3.70mm x 3.70mm)
Height - Seated (Maximum) 0.083" (2.12mm)
Thermal Resistance of Package 3°C/W
Win Source Part Number 784787-LXH8-FW30-5
Popularity Medium
Supply and Demand Status Limited
Family Name LXH8
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LXH8-FW30-5 CAD Model

Description

The Lumileds LXH8-FW30-5 from Lumileds is a surface-mount LED emitter designed for use in optoelectronic applications.

  • Maximum Current: 1.2A
  • Viewing Angle: 120 degrees
  • Voltage-Forward: 2.8V
  • CCT: 3000K 5-Step MacAdam Ellipse
  • Package: 2-SMD, no lead, exposed pad
  • Thermal Resistance: 3 degrees Celsius per watt
  • Lumens/Watt: 101 lm/W @ 700mA
  • CRI: 80
  • Flux @ 85°C, Current - Test: 197 lm (typical)
  • Supply and Demand Status: Limited
